Description

Product Description

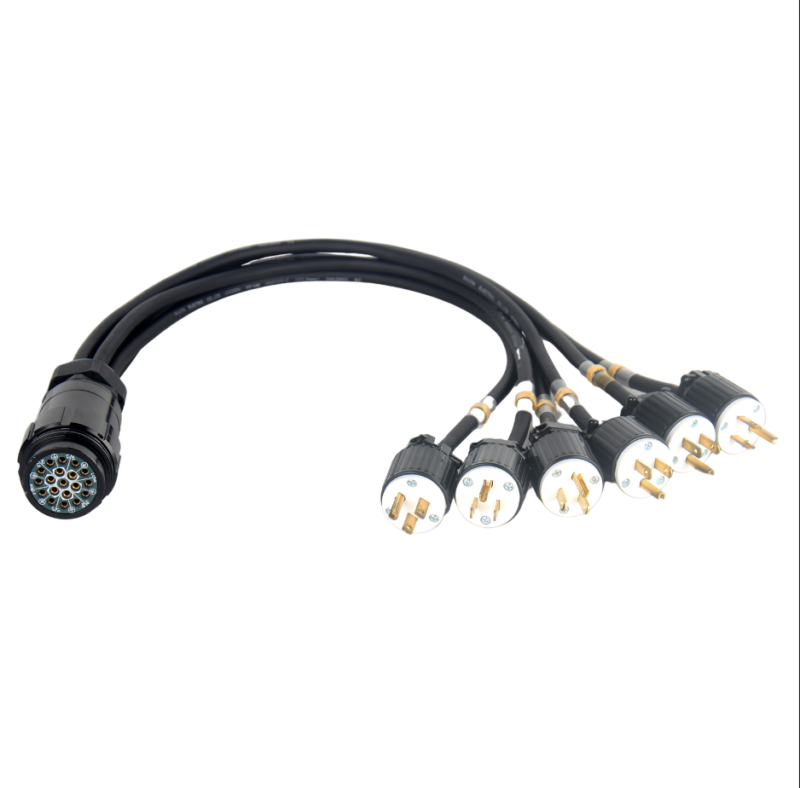

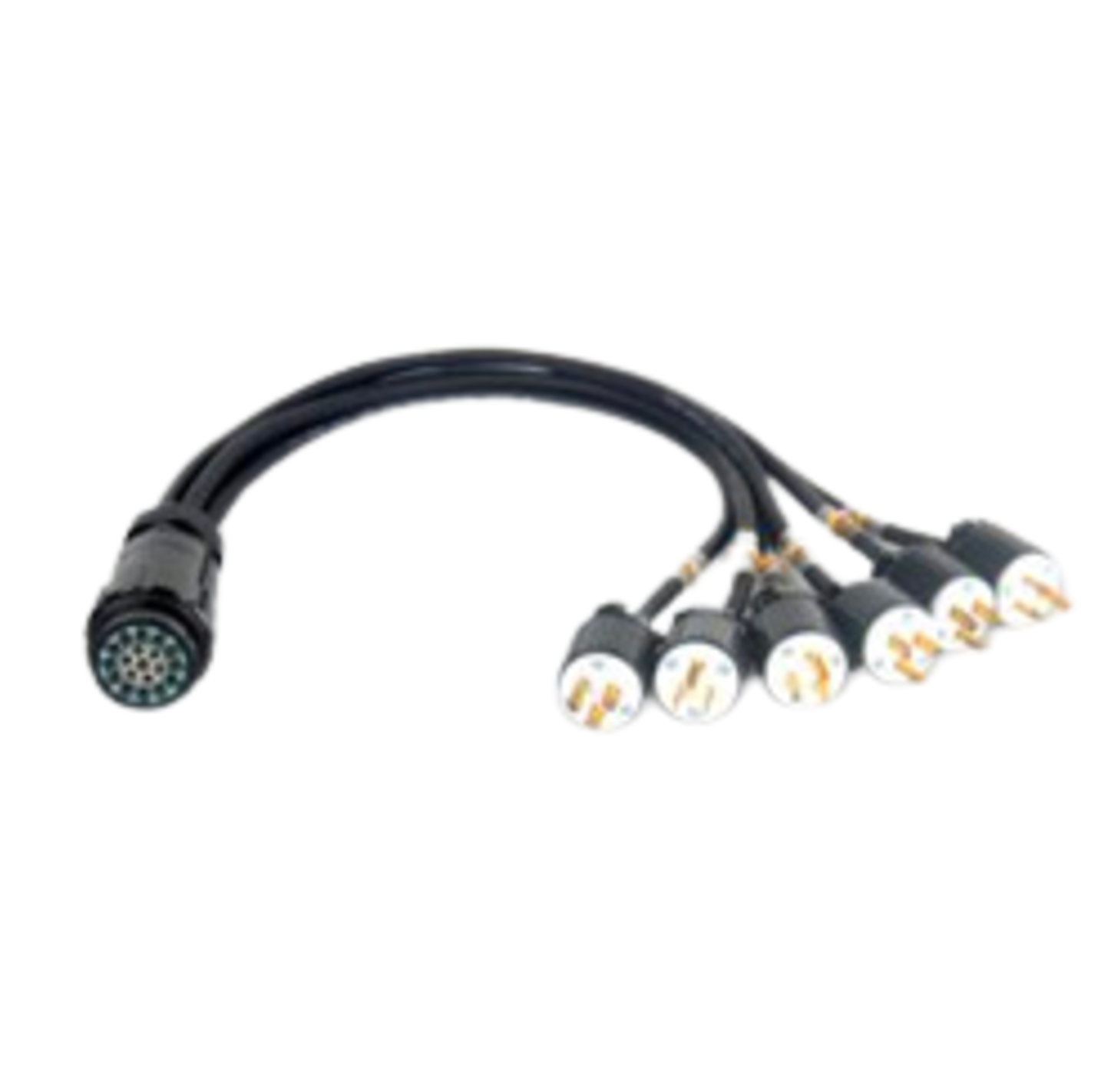

The HYPERCORD® 3ft 19Pin Female Socapex LSC-19 to 6x Male Edison Breakin Cable provides a reliable power connection for 6-circuit HYPERCORD® 19-Pin LSC-19 connectors from (6) NEMA 5-15P plugs. Designed for use in motion picture, television, and live event productions, this cable offers durable HYPERCORD® connectors with interlocking keys to prevent spinning and eliminate conductor damage. The machined aluminum housing and silver-plated brass contacts ensure high conductivity and long-lasting durability, while the all-black construction seamlessly blends into stage and studio settings.

Key Features & Benefits:

• Power supply from (6) NEMA 5-15P plugs to a 6-circuit HYPERCORD® 19-Pin LSC-19 connector
• Prevents spinning with 12 interlocking keys on the HYPERCORD® 19-Pin LSC-19 connectors
• Eliminates broken conductors and damaged ground rings
• Prevents misalignment of male and female circuit conductors
• Durable machined aluminum housing with a hard black anodized finish
• Silver-plated brass contacts for high conductivity
• All-black construction ideal for stage and studio lighting applications
• Markets Served: Motion Picture and Television Production, Theatrical Production, Concert Touring, Live Events, Convention Centers

Specifications:

• Rating: 15 Amp, Single-phase (L, N, G), 2-pole, 3-wire, 125 VAC, 60 Hz (Maximum with 50% diversity of load per NEC 520-44)
• Male Plug: (6) NEMA 5-15P, 15 Amp, 2-pole, 3-wire, 125 VAC, straight blade, black
• Cable/Cord: (6) AMW 2586, Black
• Length: 3ft
• Female Connector: (1) 20A, 19-Pin LSC-19 Female, Black
