Description

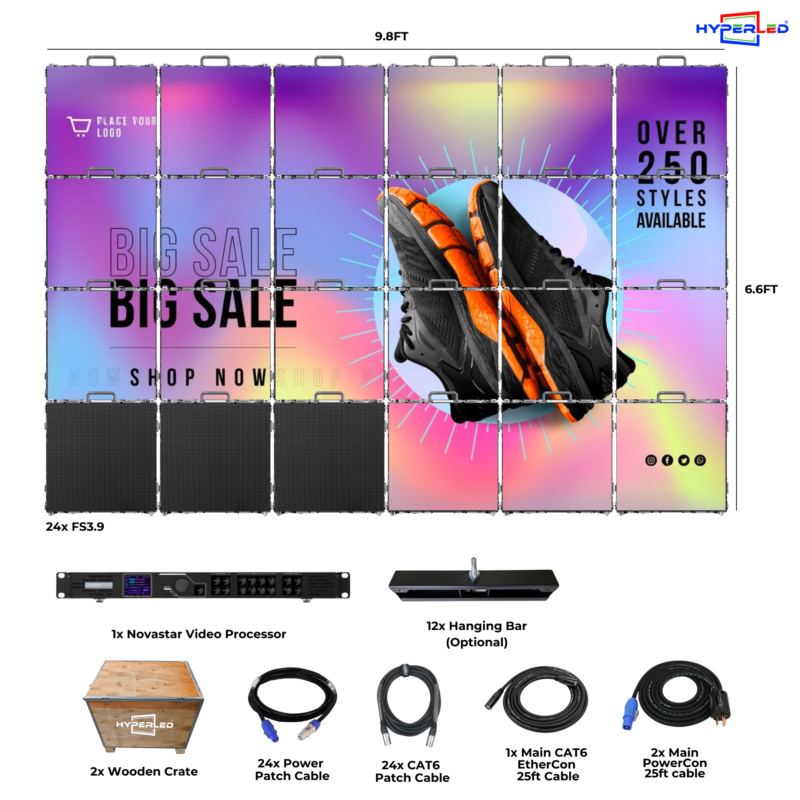

HyperLED Indoor Fixed P3.9mm 9.8’by 6.6′
LED Video Wall Turnkey Solution
Package Includes:

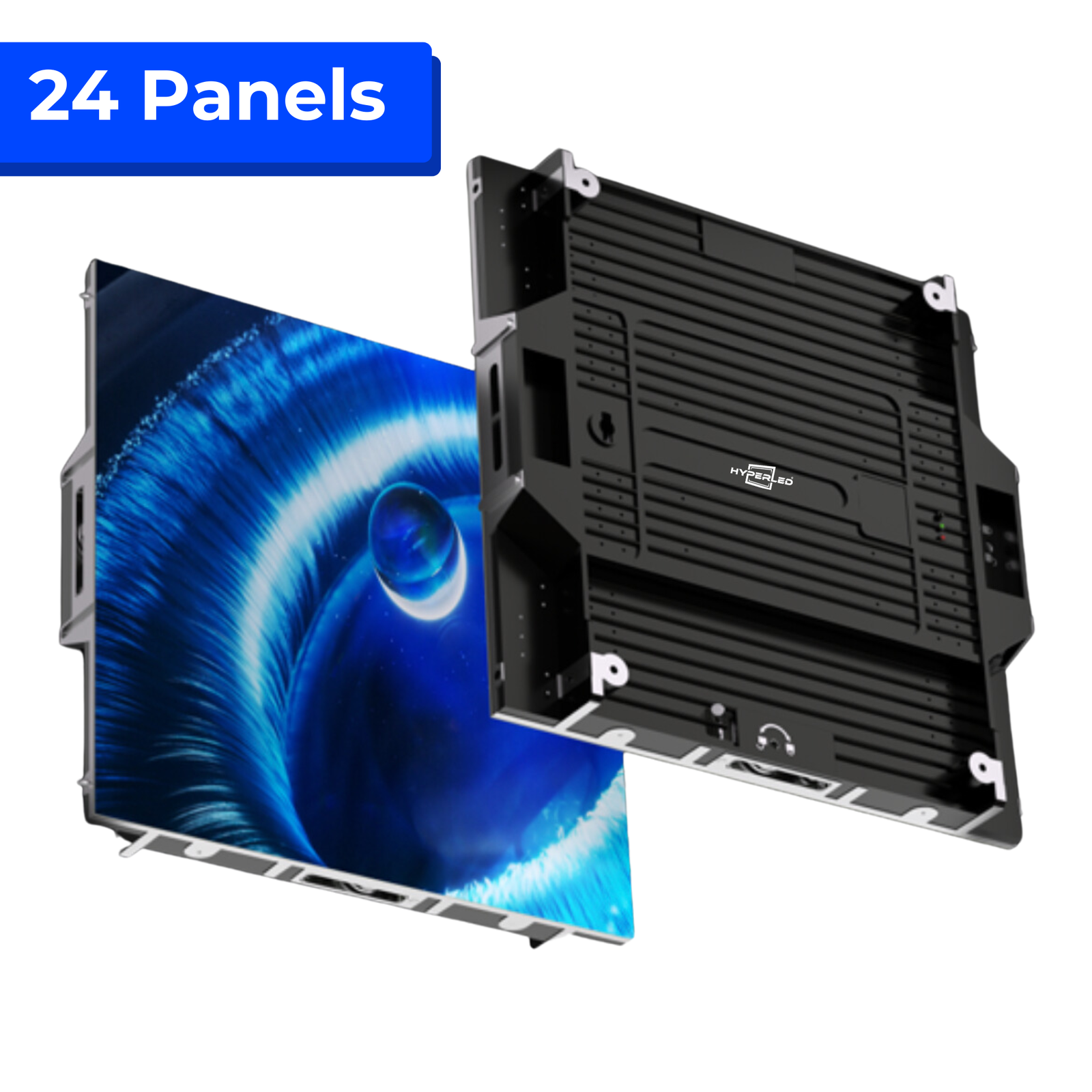

- 24x 500mm x 500mm LED Video Panels
- 24x Power Patch Cables

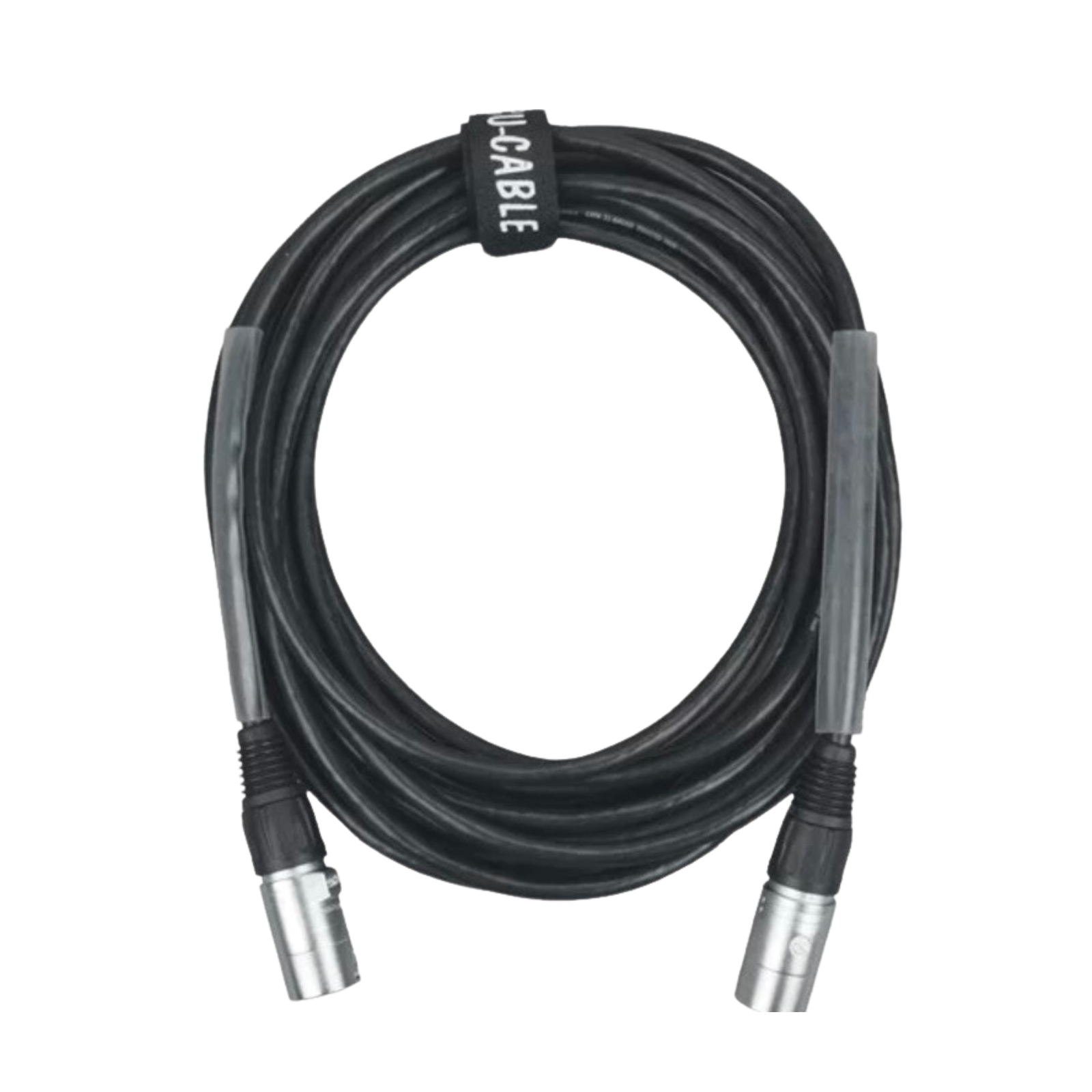

- 24x CAT6 Patch Cables

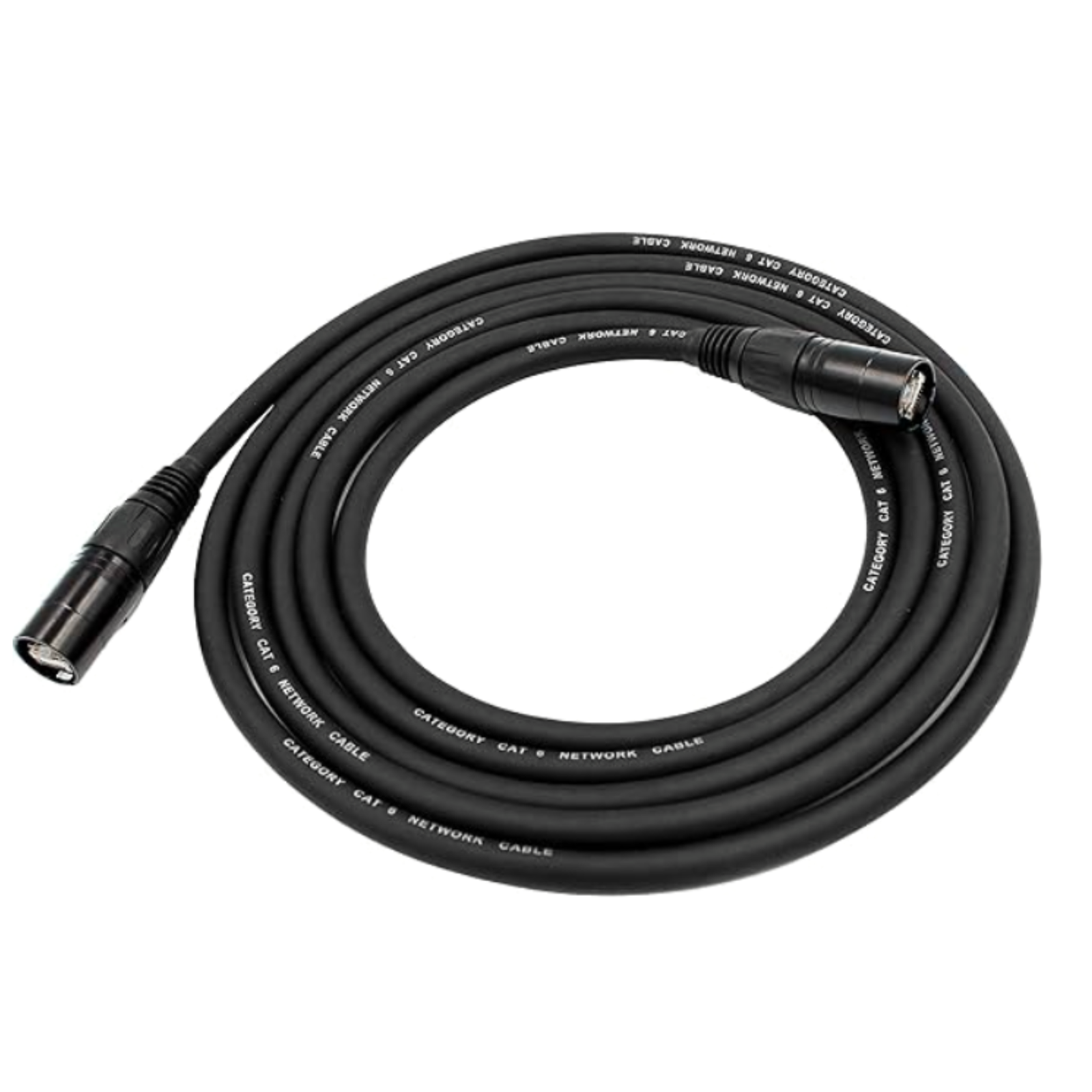

- 1x Main CAT6 EtherCon 25ft Cable

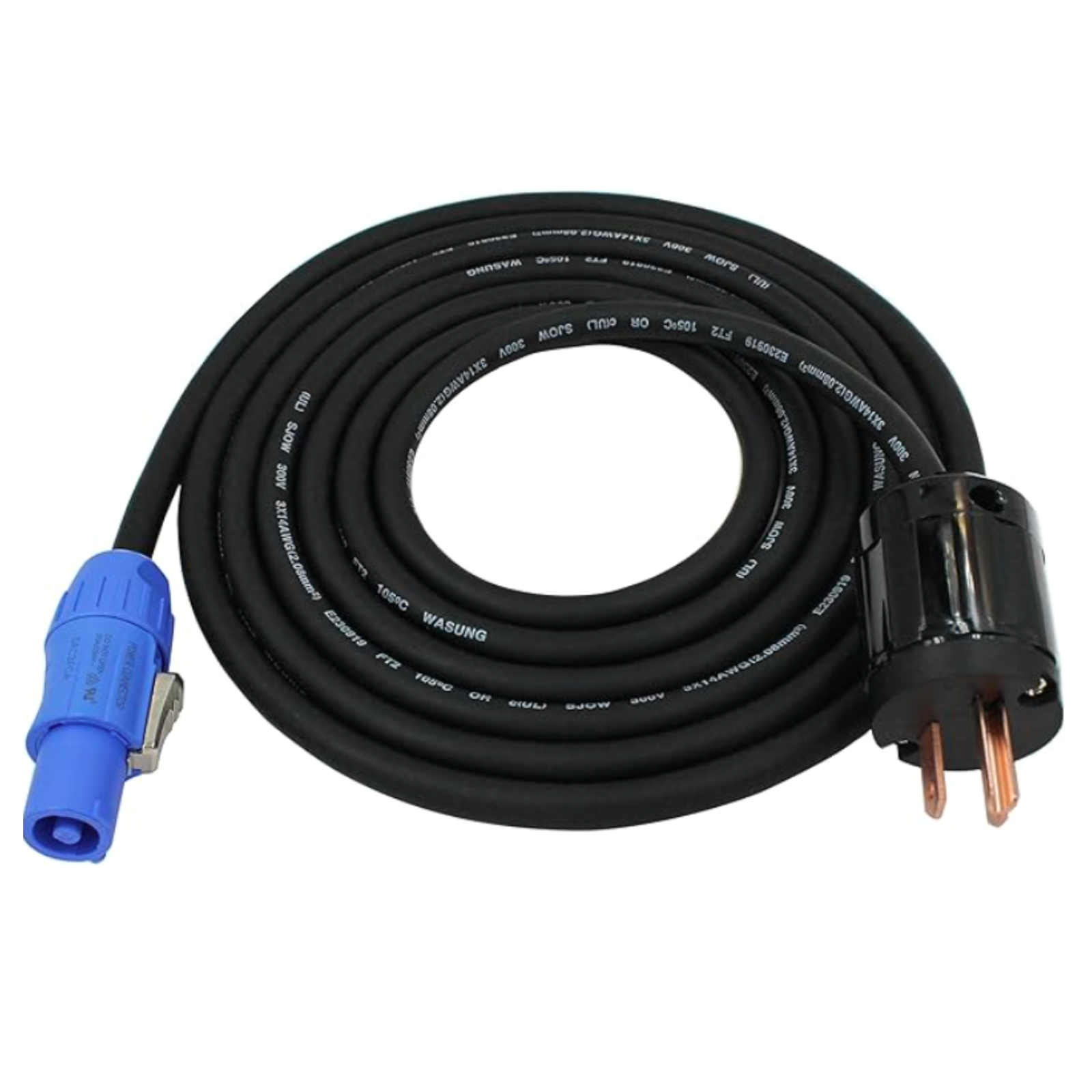

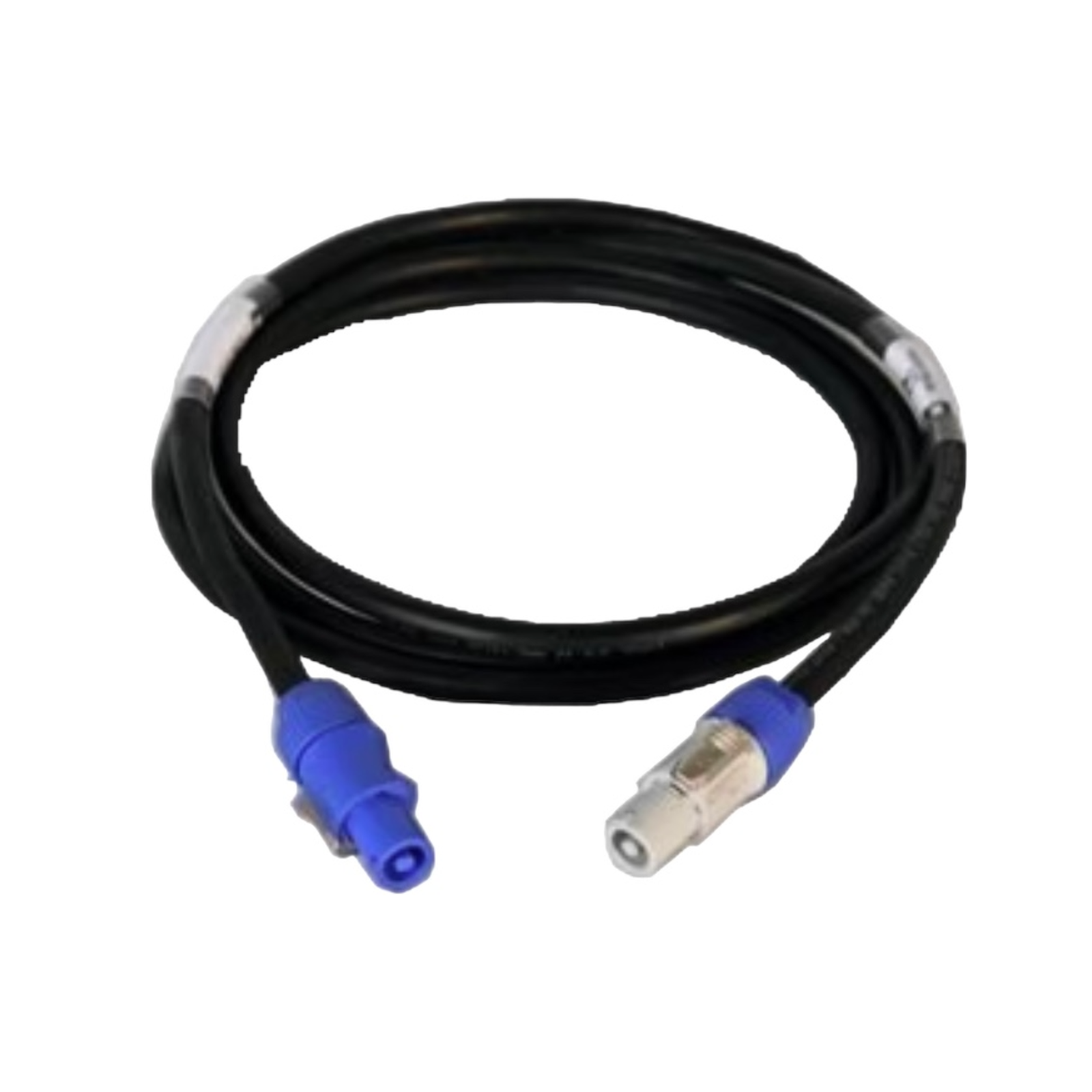

- 2x Main PowerCon 25ft Cables

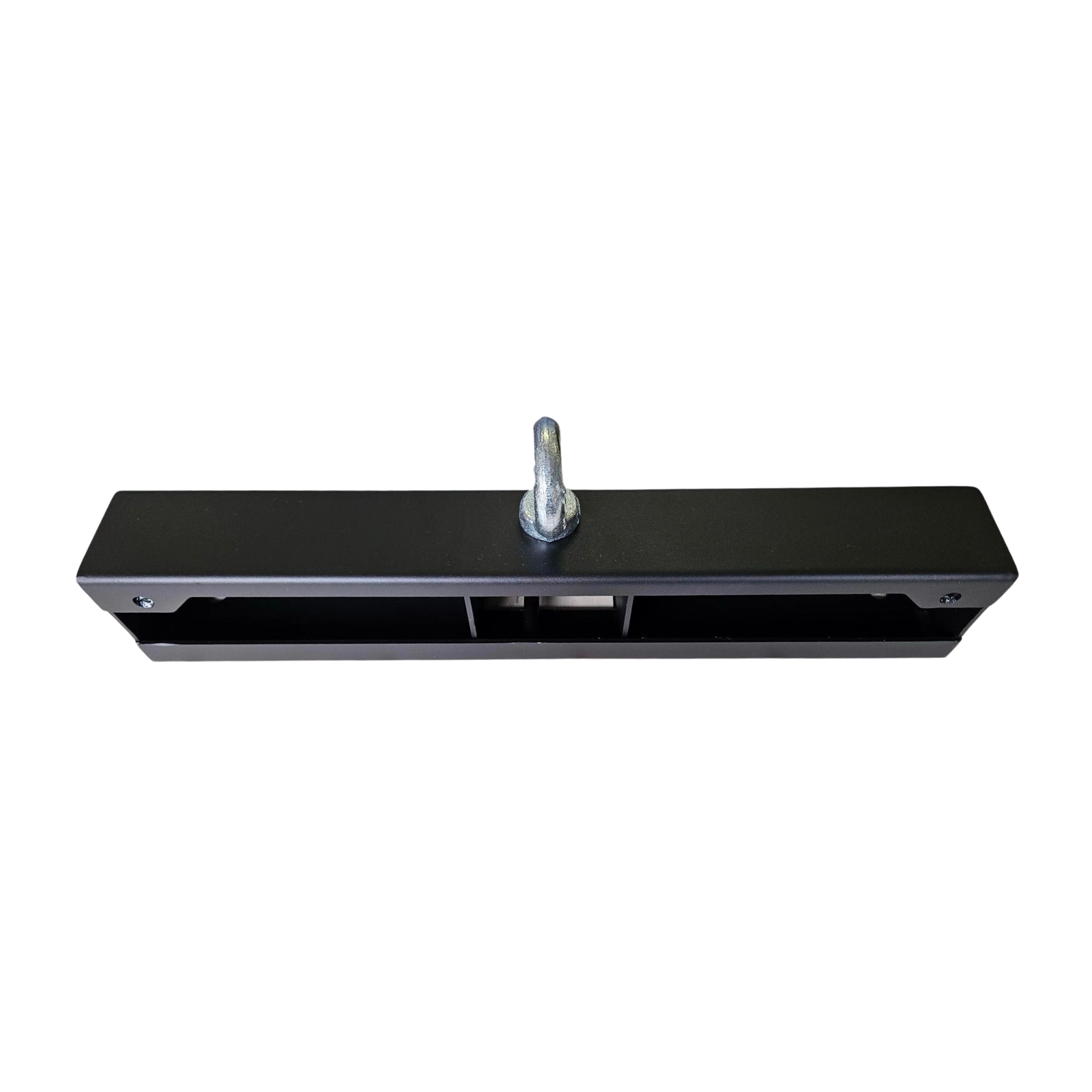

- 12x Hanging Bars (Optional)
- 1x Video Processor

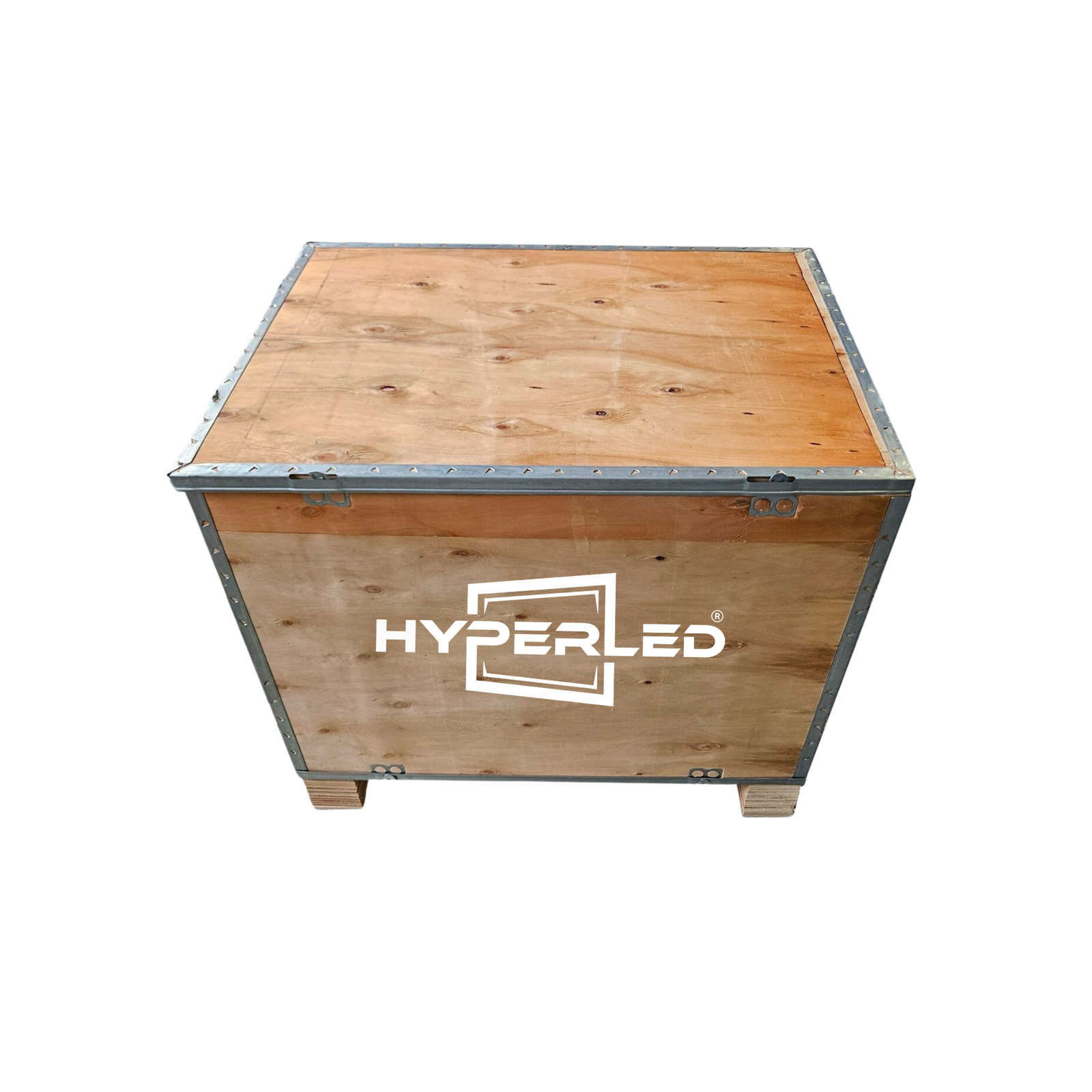

- 2x Wooden Crates
- 2-year Warranty
Installation:
- Hanging or Stacking
- (For Stacking, please see the ground support information)
Specifications:
- Pixel Density: 65536 pixels/sqm
- Dimensions (w x h): 250mm x 250mm
- Resolution of Module: 64×64
- Dimensions (w x h) (mm): 500x500x63mm
- Cabinet Material: Die-casting
- Weight of Cabinet (kgs): 6.9KG
- Average/Max Consumption: 200/600 (watt/m2)
- Driving IC: 16389SF
- Driving Mode: 16 scan
- Minimum Viewing Distance: >3m
- Brightness Control: 256 levels
- Greyscale: 16 bits
- Refresh Rate: >3840Hz
- Driving mode: Constant current driving
Optical Ratings:
- Viewing Angle: 160°
- Brightness: 700cd/㎡
- Color Depth: 16 bits
Power Supply:
- Input power frequency: 50 or 60 Hz
- Input Voltage: 86 ~ 264 Volt
Control System:
- Refresh Rate: >3840Hz
Environmental:
- Operation Temperature: -20 ~﹢50 °C±10%
- MTBF: ﹥10,000 hours
- Input Voltage(V): AC110V±10%
