HyperLED RDE2.6 Indoor Rental P2.6mm

26.2′ by 9.8′ LED Video Wall Turnkey Solution

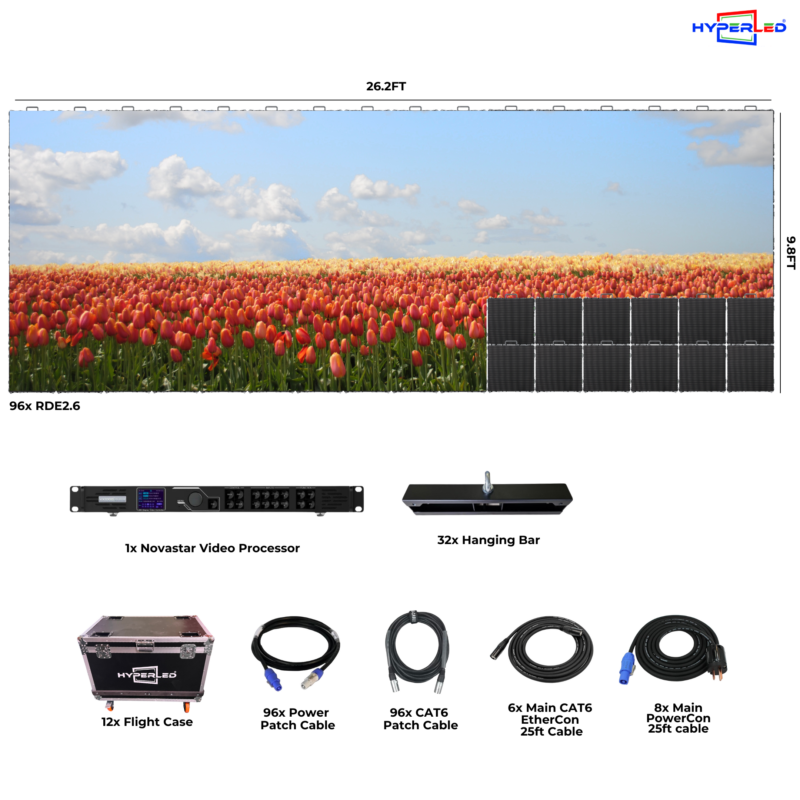

Package Includes:

• 96x 500mm x 500mm LED Video Panels
• 96x Power Patch Cables
• 96x CAT6 Patch Cables
• 8x Main CAT6 EtherCon 25ft Cable
• 8x Main PowerCon 25ft Cables
• 32x Hanging Bars
• 1x Video Processor

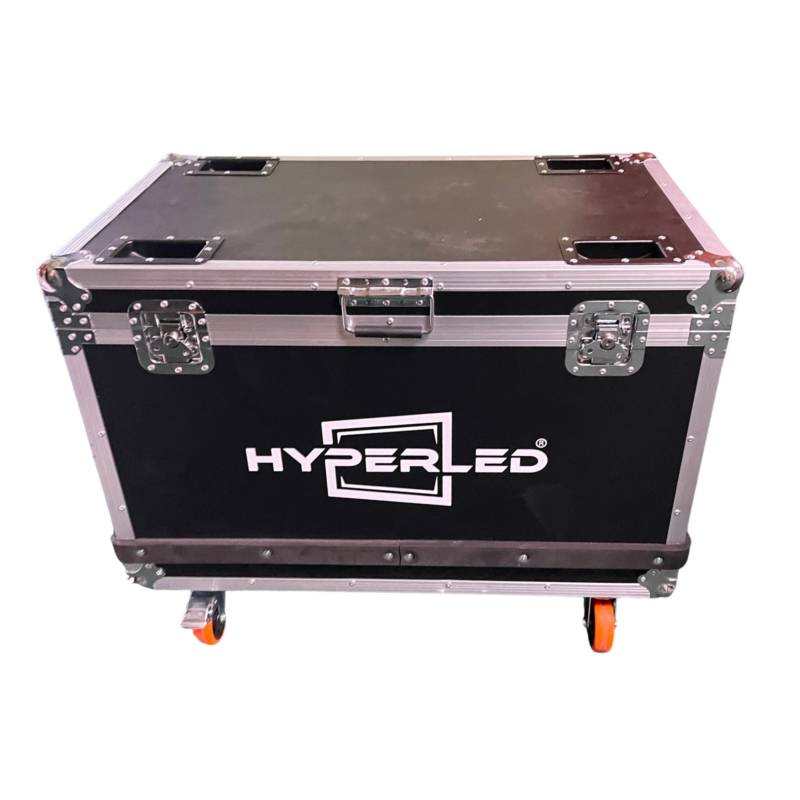

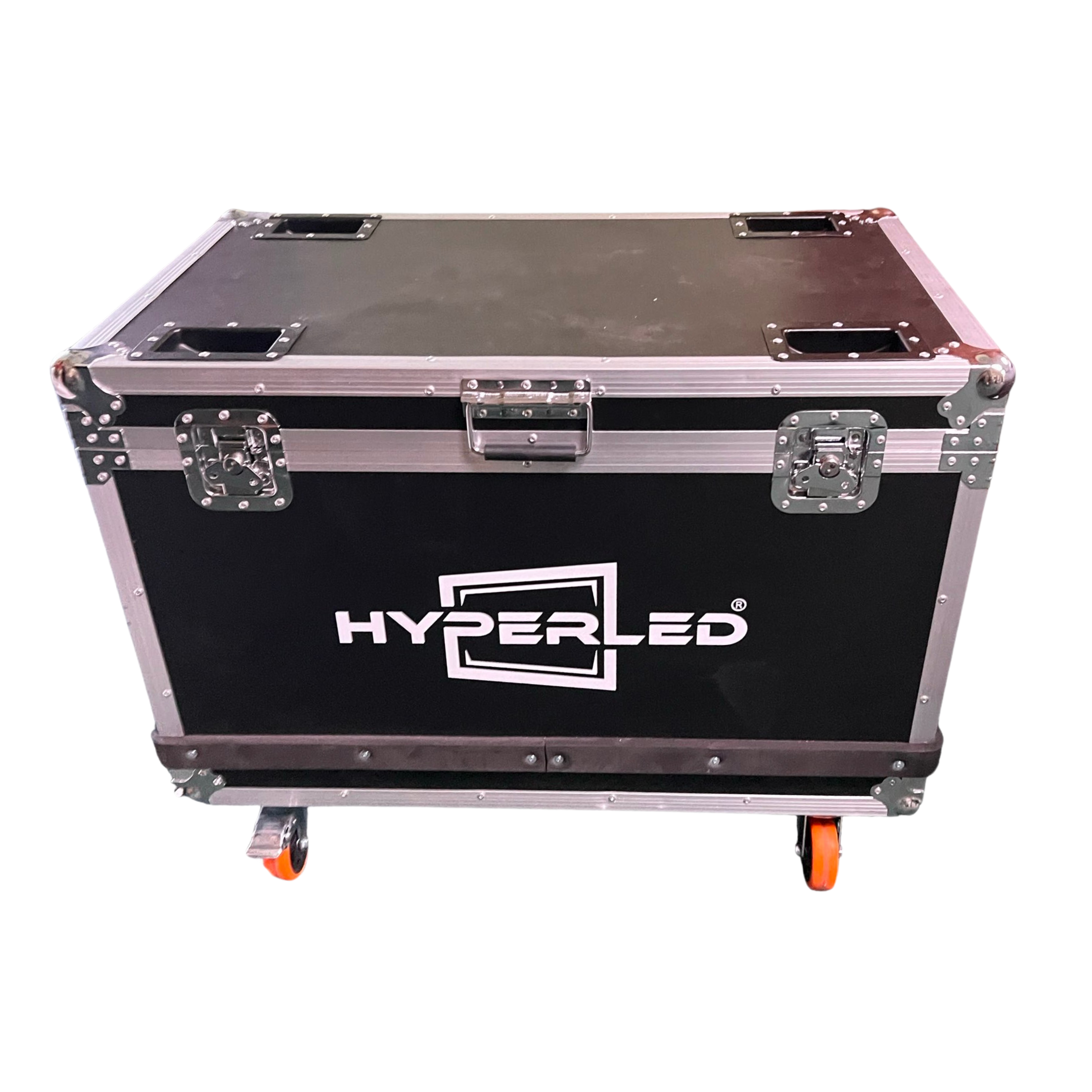

• 12x Wooden Crates
• 2-year Warranty

Installation:

• Hanging or Stacking
  • (For Stacking, please see the ground support information)

Specifications:

• Pixel Density: 192 x 192
• Dimensions (w x h): 250mm x 250mm / 19.7″ x 19.7″
• Resolution of Module: 64×64
• Dimensions (w x h) (mm): 500x500x83mm
• Cabinet Material: Die-casting
• Weight of Cabinet (kgs): 8.6KG
• Average/Max Consumption: 250/750 (watt/m2)
• Driving IC: 16389SF
• Driving Mode: 16 scan
• Minimum Viewing Distance: >4m
• Brightness Control: 256 levels
• Greyscale: 16 bits
• Refresh Rate: >7680Hz
• Driving mode: Constant current driving
• LED Type: 3-in-1 RGB SMD1515 LED
• Lifetime at 50% brightness: 100,000 hours
• Blind spot rate: ＜1/10,000

Optical Ratings:

• Viewing Angle: 160°
• Brightness: 700cd/㎡
• Color Depth: 16 bits

Power Supply:

• Input power frequency: 50 or 60 Hz
• Input Voltage: 86 ～ 264 Volt

Control System:

• Refresh Rate: >7680Hz
• Control distance: Twisted pair network cable maximum transmission distance 130m, Multi-mode Optical fiber maximum 500m, Single-mode optical fiber maximum 10KM
• Signal input format: Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI

Environmental:

• Operation Temperature: -20 ～﹢50 °C±10%
• MTBF: ﹥10,000 hours
• Input Voltage(V): AC110V±10%
• Color Temperature: 3000-10000K
• International Protection: IP65
