HyperLED Outdoor Rental P3.9mm 8.2′ by 5′ LED Video Wall Turnkey Solution

  • High-resolution outdoor video wall panel
  • Luminance of 4000 NITS
  • Compact 500mm x 500mm form factor
  • 2.9mm pixel pitch for ultra-HD display
  • Convex/concave curving capabilities from -5 degrees to +5 degrees
  • Quick-lock mechanisms on both left and right sides of each panel
  • Refresh rate of 7680Hz driven by LED drivers
  • Novastar A8s receiving cards
  • Minimal latency for top-tier performance
  • Suitable for various outdoor installations and applications: Celebration, Wedding, Concert, Theater, Discotheque, Night Club, Conference Hall, Launch Party, Dance Party, Multi-functional Hall and so on

Original price was: $10,599.00.Current price is: $9,499.00.

Quantity
SKU: HL-RDO3982X5 Categories: , , ,
Sale!

Description

HyperLED Outdoor Rental P3.9mm

8.2′ by 5′ LED Video Wall Turnkey Solution

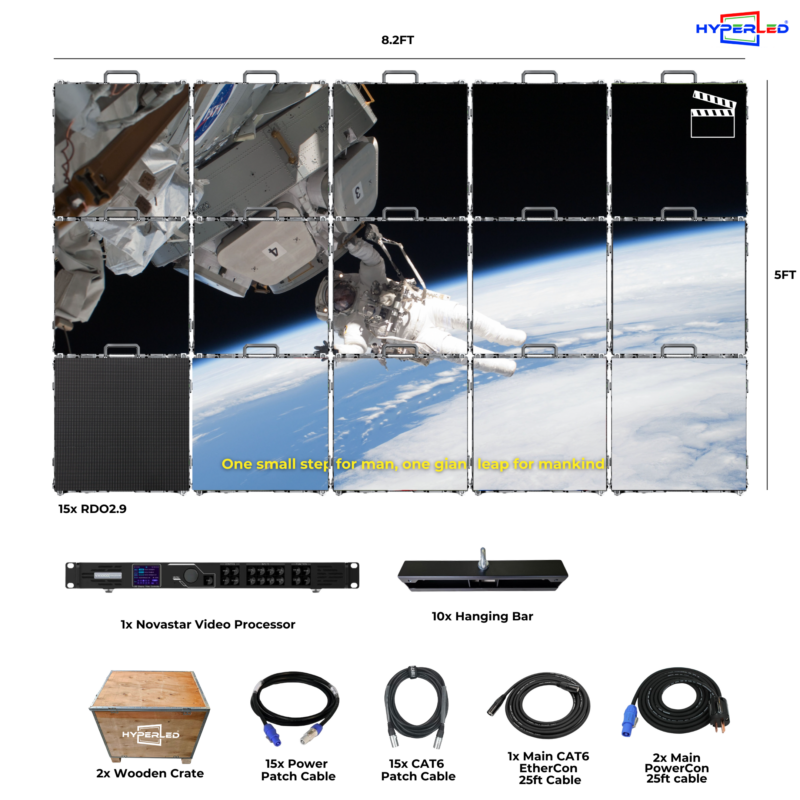

Package Includes:

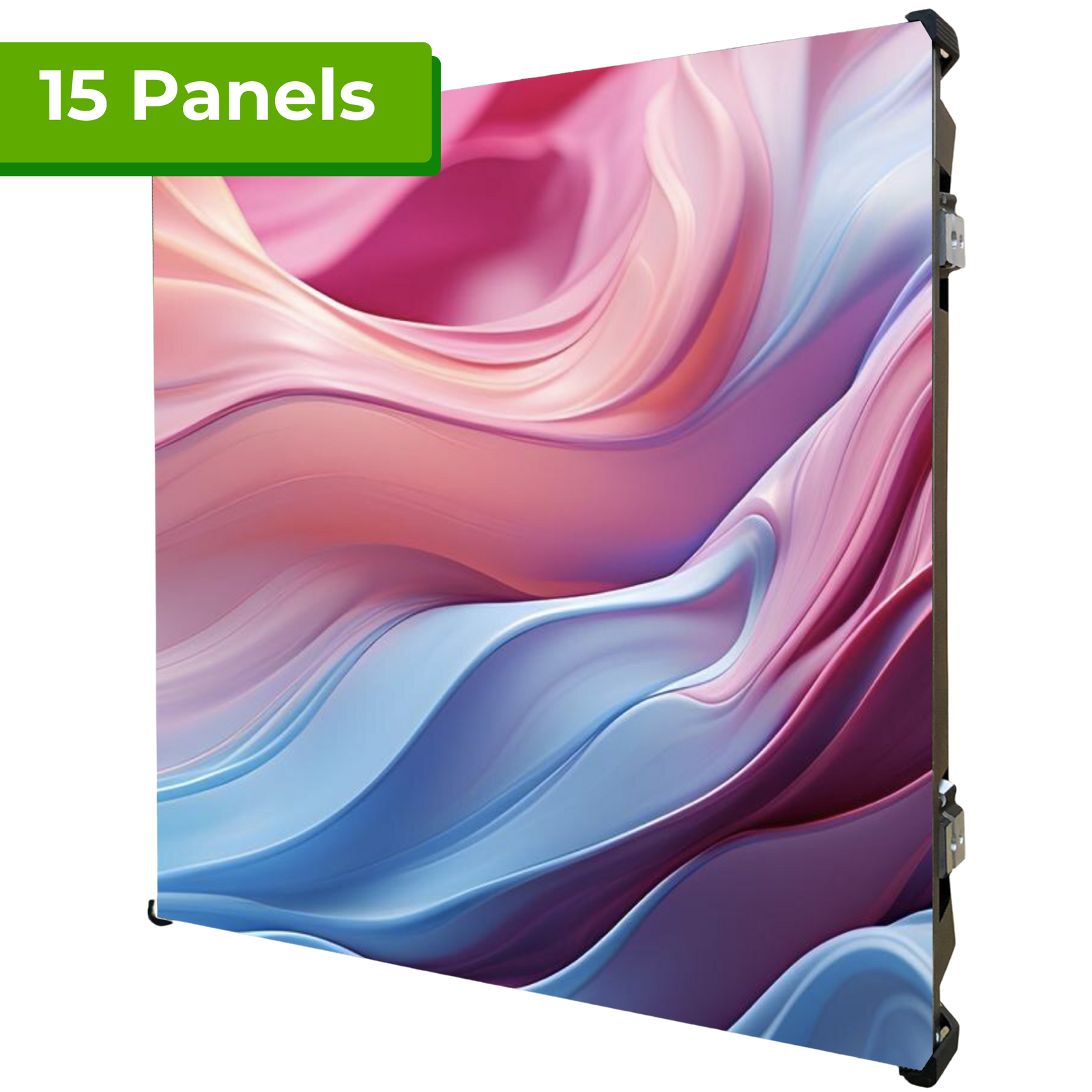

  • 15x 500mm x 500mm LED Video Panels
  • 15x Power Patch Cables
  • 15x CAT6 Patch Cables
  • 1x Main CAT6 EtherCon 25ft Cable
  • 2x Main PowerCon 25ft Cables
  • 10x Hanging Bars
  • 1x Video Processor
  • 2x Wooden Crates
  • 2-year Warranty

Installation:

Specifications:

  • Pixel Density: 168 x 168
  • Dimensions (w x h): 250mm x 250mm/ 19.7″ x 19.7″
  • Resolution of Module: 84×84
  • Dimensions (w x h) (mm): 500x500x83mm
  • Cabinet Material: Die-casting
  • Weight of Cabinet (kgs): 8.6KG
  • Average/Max Consumption: 250/750 (watt/m2)
  • Driving IC: 16389SF
  • Driving Mode: 28 scan
  • Minimum Viewing Distance: >3m
  • Brightness Control: 256 levels
  • Greyscale: 16 bits
  • Refresh Rate: >7680Hz
  • Driving mode: Constant current driving
  • LED Type: 3-in-1 RGB SMD1415 LED
  • Lifetime at 50% brightness: 100,000 hours

Optical Ratings:

  • Viewing Angle: 160°
  • Brightness: 4500cd/㎡
  • Color Depth: 16 bits
  • Blind spot rate: ＜1/10,000

Power Supply:

  • Input power frequency: 50 or 60 Hz
  • Input Voltage: 86 ～ 264 Volt

Control System:

  • Refresh Rate: >7680Hz
  • Control distance: Twisted pair network cable maximum transmission distance 130m, Multi-mode Optical fiber maximum 500m, Single-mode optical fiber maximum 10KM
  • Signal input format: Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI

Environmental:

  • Operation Temperature: -20 ～﹢50 °C±10%
  • MTBF: ﹥10,000 hours
  • Input Voltage(V): AC110V±10%
  • Color Temperature: 3000-10000K
  • International Protection: IP65
