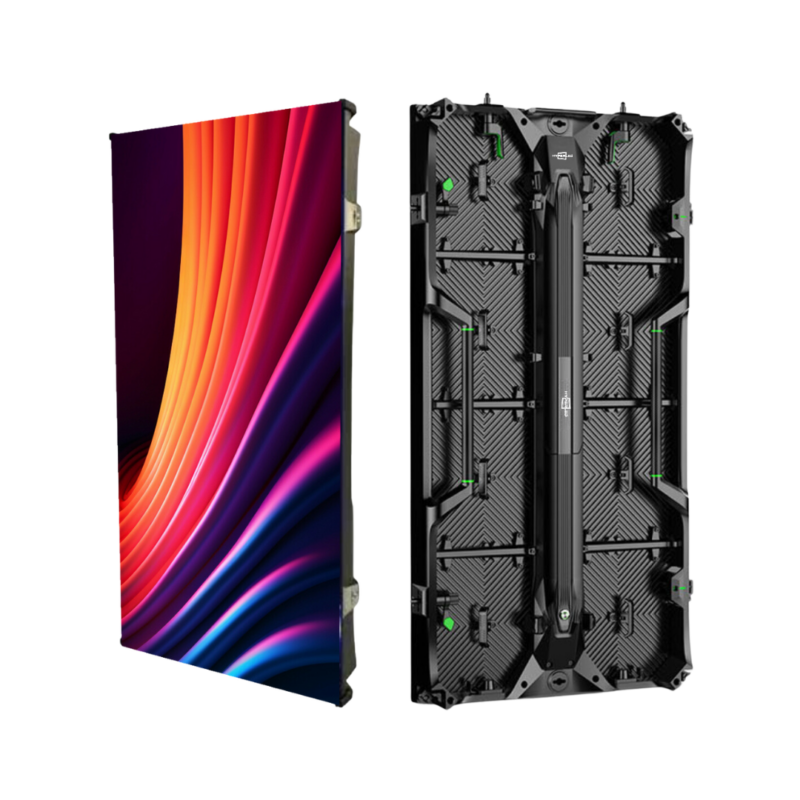

HyperLED RDLO3.9 500mmx1000mm, 3.9mm Pixel Pitch Outdoor Fixed Video Panel

  • High-resolution outdoor video wall panel
  • Luminance of 4500 NITS
  • Compact 500mm x 1000mm form factor
  • 3.9mm pixel pitch for ultra-HD display
  • Convex/concave curving capabilities from -5 degrees to +5 degrees
  • Quick-lock mechanisms on both left and right sides of each panel
  • Refresh rate of 7680Hz driven by LED drivers
  • Novastar A8s receiving cards
  • Minimal latency for top-tier performance
  • Perfect for high-end retail, Corporate Lobbies, Broadcasting Studios, Celebration, Wedding, Concert, Theater, Discotheque, Night Club, Conference Hall, Launch Party, Dance Party, Multi-functional Hall, and anywhere premium image quality is paramount.

$2,190.00

Quantity
SKU: HL-RDLO39500X1000 Categories: , , ,
Sale!

Description

HyperLED RDLO3.9 500mmx1000mm,

3.9mm Pixel Pitch Outdoor Fixed Video Panel

Installation:

Specifications:

  • Pixel Density: 128 x 128
  • Dimensions (w x h): 250mm x 250mm/ 19.7″ x 19.7″
  • Resolution of Module: 64×64
  • Dimensions (w x h) (mm): 500x1000x83mm
  • Cabinet Material: Die-casting
  • Weight of Cabinet (kgs): 14KG
  • Average/Max Consumption: 250/750 (watt/m2)
  • Driving IC: 16389SF
  • Driving Mode: 16 scan
  • Minimum Viewing Distance: >4m
  • Brightness Control: 256 levels
  • Greyscale: 16 bits
  • Refresh Rate: >7680Hz
  • Driving mode: Constant current driving
  • LED Type: 3-in-1 RGB SMD1921 LED
  • Lifetime at 50% brightness: 100,000 hours
  • Blind spot rate: ＜1/10,000

Optical Ratings:

  • Viewing Angle: 160°
  • Brightness: 4500cd/㎡
  • Color Depth: 16 bits

Power Supply:

  • Input power frequency: 50 or 60 Hz
  • Input Voltage: 86 ～ 264 Volt

Control System:

  • Refresh Rate: >7680Hz
  • Control distance: Twisted pair network cable maximum transmission distance 130m, Multi-mode Optical fiber maximum 500m, Single-mode optical fiber maximum 10KM
  • Signal input format: Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI

Environmental:

  • Operation Temperature: -20 ～﹢50 °C±10%
  • MTBF: ﹥10,000 hours
  • Input Voltage(V): AC110V±10%
  • Color Temperature: 3000-10000K
  • International Protection: IP65
