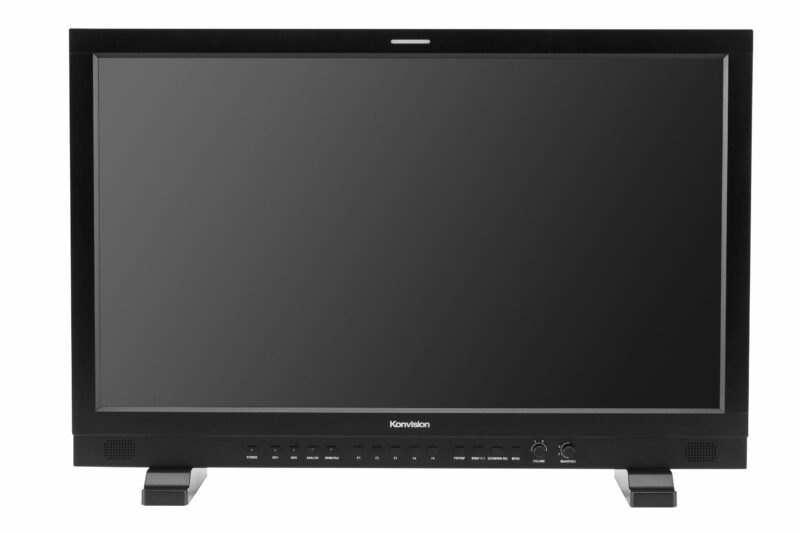

Konvision Monitor KVM-2460D(10Bit) 24″ Full HD P3 Grading Monitor

KVM-2460D, 24inch IPS LCD panel with 1920×1200 native resolution, covers up to P3 wider color gamut, high brightness, high contrast ratio. 3D LUT color calibrated, user can import their own LUT files Provided with Waveform(alarm), Vectors, Pixel Measurement, Audio Phase and more other professional features. A good choice for most demanding applications of image quality for high-end broadcast shooting, editing and production.

  • 24″ 1920×1200 native resolution, true 10bit IPS LCD panel
  • 3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)
  • 12 Bit Video Processing
  • 3D LUT Color calibration with LightSpace & CalMAN
  • Color space: REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/USER1/USER2/Bypass
  • User 3D LUT file import
  • 2K/3G/HD-SDI 2x In & 2x Out
  • PBP/PIP(size/position adjustable)
  • Waveform,Vectorscope
  • Pixel Measurement and Audio Phase

$5,280.00

Quantity
SKU: KVM-2460D Category: Tags: , ,

Description

Konvision Monitor with Pixel Measurement

Select any single pixel or block of pixels,using a movable crosshair to obtain real time readouts of YRGB values and the percent difference, make the comparison easily.

24” Full HD P3 Grading Monitor

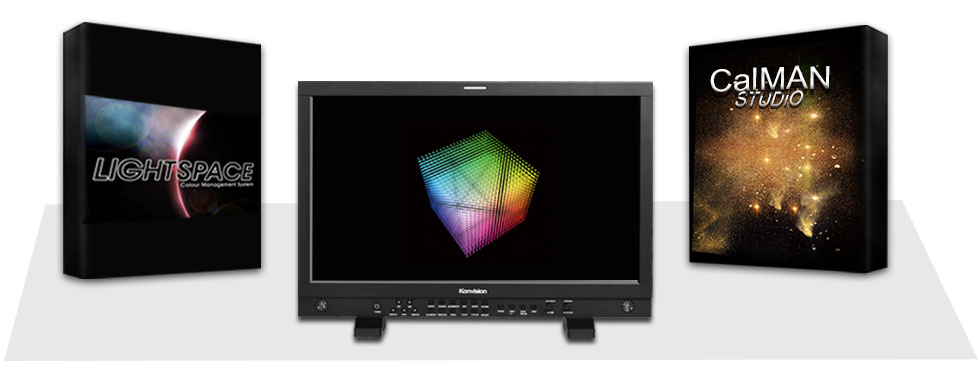

3D LUT Color Calibration

Integrated 3D LUT color calibration technology, Konvision KVM-5X series monitors are compatible with Lightspace and Calman(REC709 Color space). Lightspace and Calman for Konvision are competible with popular colorimeters including CA210, CA310, CS200, CR100, CR250, Klein K10A, X-rite i1 Display OEM.

konvision monitor

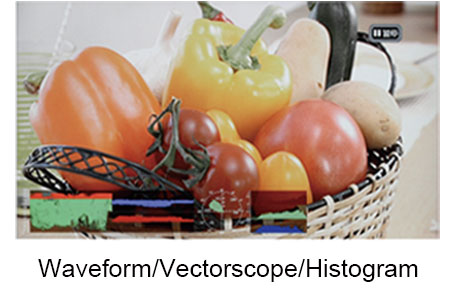

Waveform, Vector, Audio Meter for All Signals

All SDI1, SDI2 and HDMI support Waveform, WaveformAlarm, Vectorscope, Histogram, Pixel Measurement, Audio Meter display etc professional picture analysising functions.

24” Full HD P3 Grading Monitor

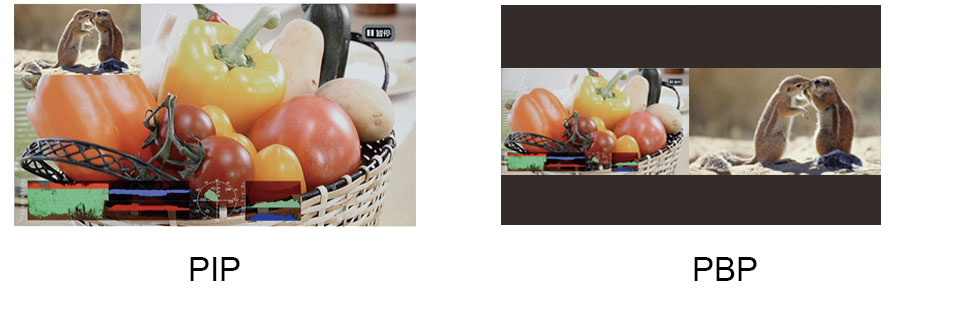

PIP/PBP Mode

Support 2 SDI signals display at same time, also one SDI with any other signals of Video, HDMI/DVI/VGA. Two pictures can swap between each other freely.

24” Full HD P3 Grading Monitor

Specification

LCD

Display Size 24″
High Resolution Full HD 1920×1200
Aspect Ratio 16:10
Wide Viewing Angle 178°(H) /178°(V)
Pixel Pitch 0.270×0.270(mm)
Color Depth 1.07B (True 10bit)
Back Light LED
Brightness 400cd/m2
Contrast Ratio 1400:1

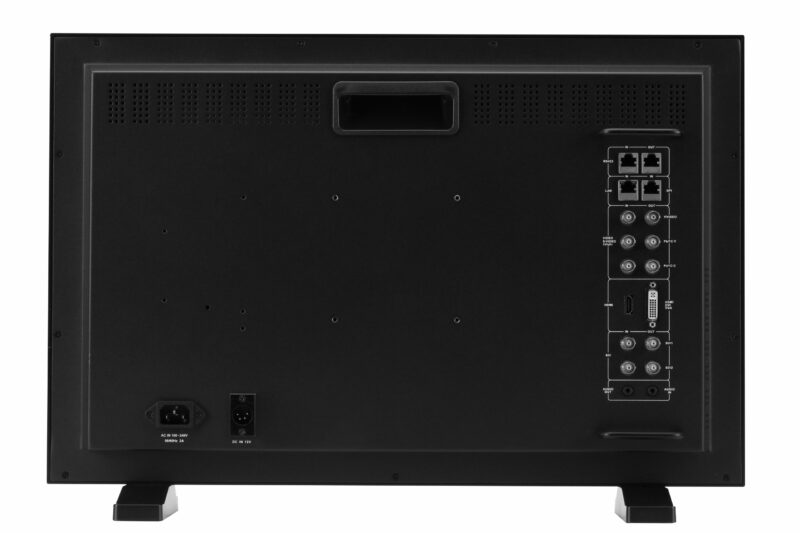

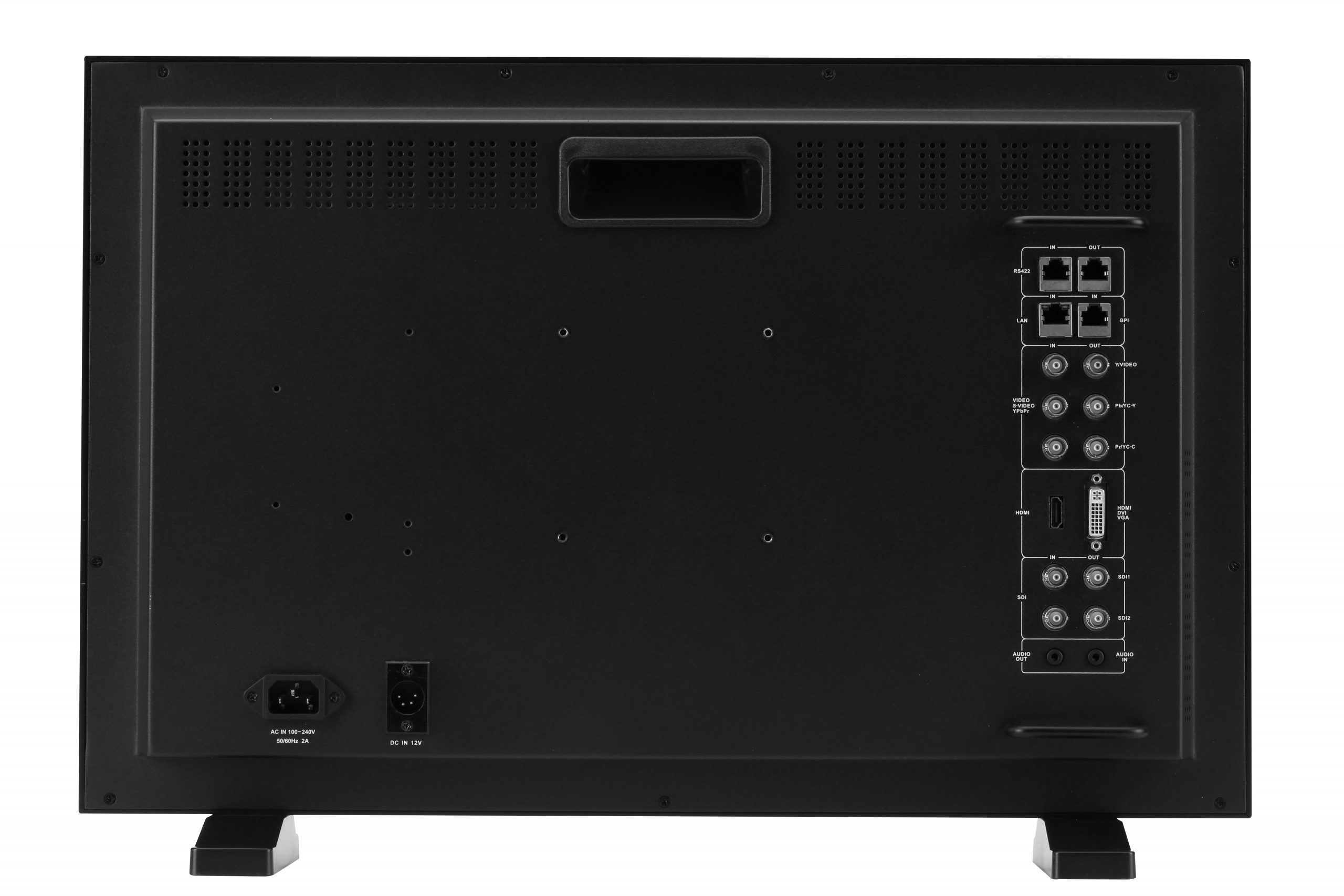

Input

2 × BNC SDI1/2 Channel Inputs (3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C
1 × DVI-I DVI/VGA Input
1 × HDMI HDMI Input



Output

2 × BNC SDI1/2 Channel Outputs (3G/HD/SD-SDI Auto-Detected)
3 × BNC YPbPr/Video/Y/C



Compatible SDI Formats

SMPTE-425M-A/B 4:2:2 YCbCr 10-bit 1080P(60/59.94/50)
4:4:4 YCbCr/RGB 10-bit 1080i(60/59.94/50)
4:4:4 YCbCr/RGB 12-bit 1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:2:2 YCbCr 12-bit 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
4:4:4 YCbCr/RGB 10-bit 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-274M 1080i(60/59.94/50)
1080P(30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-296M 720P(60/59.94/50/30/29.97/25/24/23.98)
SMPTE-260M 1035i(60/59.94)
SMPTE-125M 480i(59.94)
ITU－R BT.656 576i(50)



Audio In/Out

SDI Audio In 16 Channels Embedded Audio
HDMI Audio In 2 Channels Embedded Audio
Audio Meter Display H/V Audio Level Meter Display(VU+PPM)
Analog Audio Input 3.5mm Headset Switch Cable
Audio Headset Output 3.5mm Headset Jack
Built-in Speaker 2.5W×2



General

Operating Temperature -10℃～50℃
Input Voltage AC 100-240V 50/60Hz / DC 12V
Power Consumption 55W
Power-Saving Mode Turn off unimportant Key Automatically if no signal input
VESA Installation EAS MIS-D(100×100mm)
Shell Materials Aluminum on Front-Shell/Base Supporter/Rust-Proof iron on Back-Shell
Accessory Power Cord /Desktop stand
