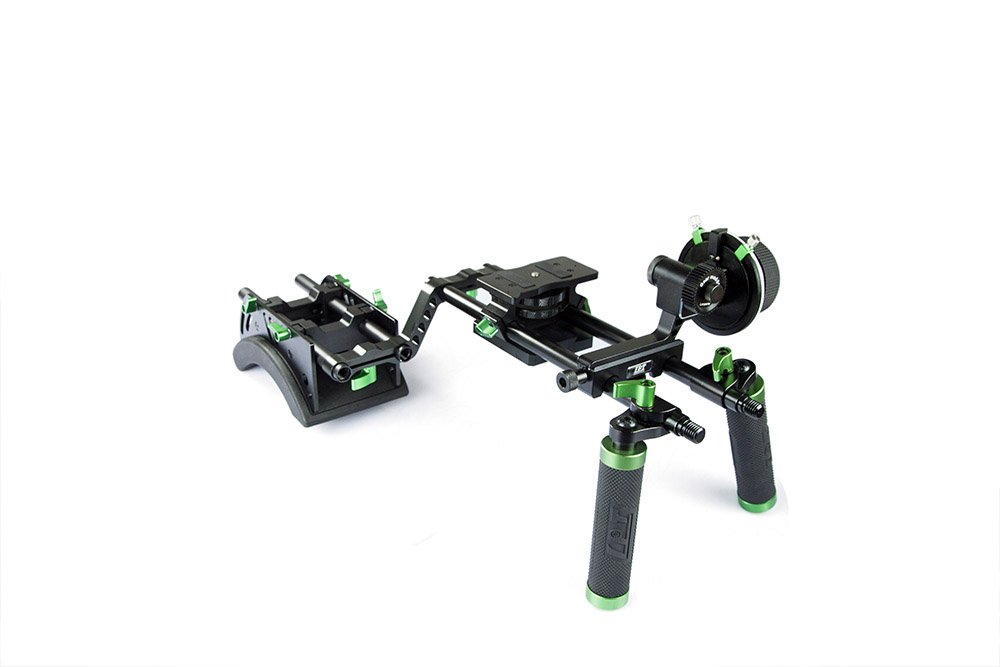

The Lanparte Double Handle DSLR Camera Rig Kit is a 15mm-rod shoulder-mount solution for DSLRs or mirrorless cameras and comes complete with a clamp-on follow focus and a quick-release baseplate. The baseplate includes a pair of 11.8″ 15mm rods to support the follow focus and two handles with non-slip rubberized grips. To complete the shoulder-mounted system, a shoulder support with 7.9″ 15mm rods is included, which attaches to the rear of the rig using an offset clamp. The offset design places your camera’s rear LCD screen in front of your eyes for easier viewing while shooting.
The follow focus uses a clamping design that lets you attach it to the rods without having to remove the handles or other rod-mounted accessories. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gear box. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included.
Please see the links below for more information on the components of this kit.

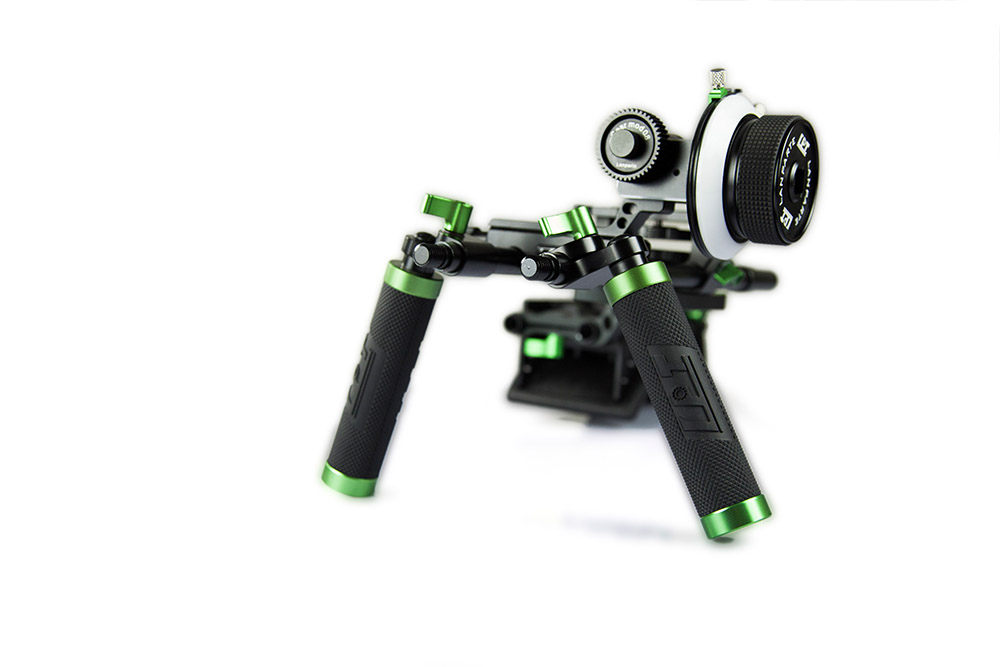

LanParte Basic Handle for 15mm Rod (Pair)
This Basic Handle pair from LanParte enables dual handgrip support with 15mm rod support rigs. Each handle is constructed from CNC machined aluminum and features a 15mm rod clamp and non-slip silica-gel grip.
LanParte Follow Focus V2 with Hard Stops for 15mm Rods
The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included

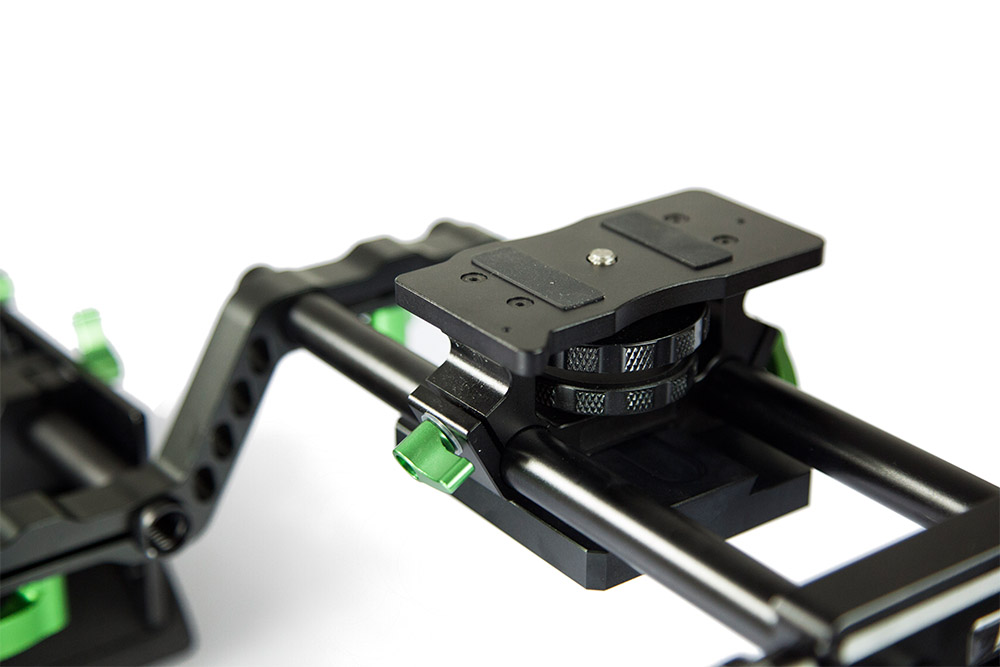

LanParte Quick Release Baseplate
The Quick Release Baseplate from Lanparte is a quick-release baseplate designed to be used with a standard 15mm rod system. The bottom of the plate features 1/4″ and 3/8″ threads for tripod mounting. Two 11.8″ aluminum rods are included.

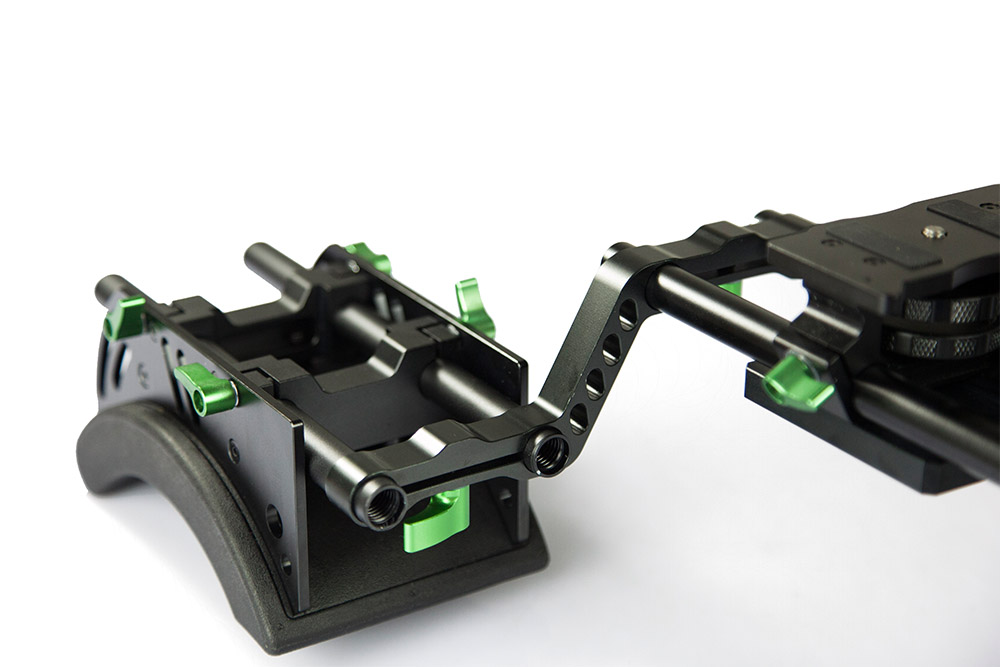

LanParte Shoulder Support for DSLR Camera Rig
Carry your rig on your shoulder by incorporating this Shoulder Support from Lanparte. Using dual 15mm clamps, the Shoulder Support secures to 15mm LWS rigs. A riser clamp is included for height adjust-ability. The shoulder pad is arced to comfortably sit on your shoulder for long periods of time. A pair of 15mm rods are also included in order to more easily incorporate this shoulder plate into your existing rig or extend it further back to fit more accessories.
LanParte Offset Clamp
Use the Lanparte Offset Clamp to offset the shoulder mount from the rest of your 15mm LWS rig, allowing your camera to be within your line-of-sight for checking focus and composition without the aid of an external monitor or EVF.
