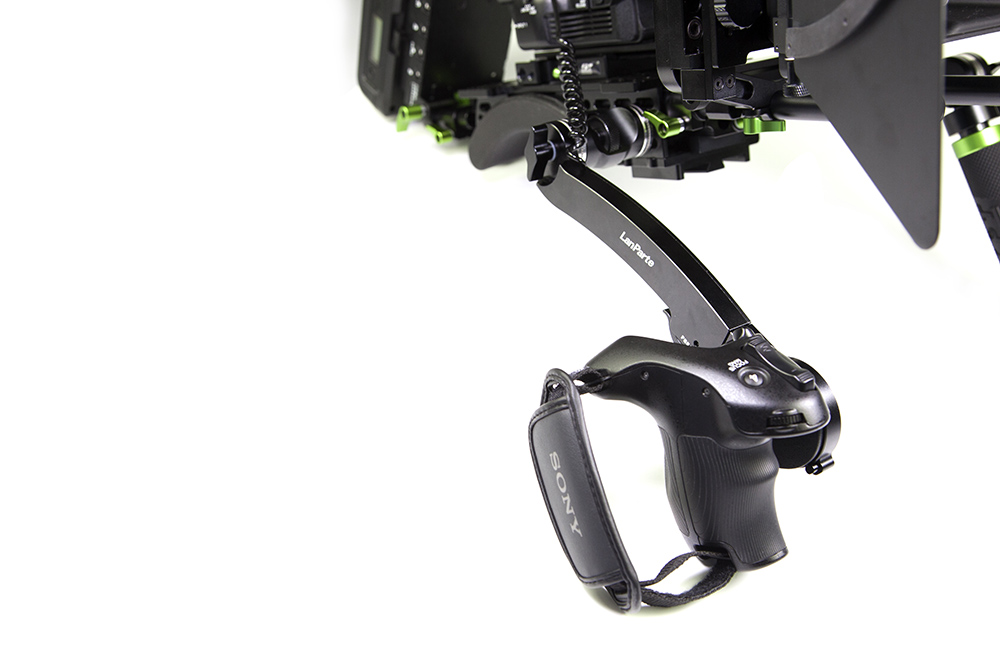

This LanParte Extension Arm is specifically designed to work with the original handgrip of the Sony PXW-FS5 and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1′ of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2″ distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip’s controls.

Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel.

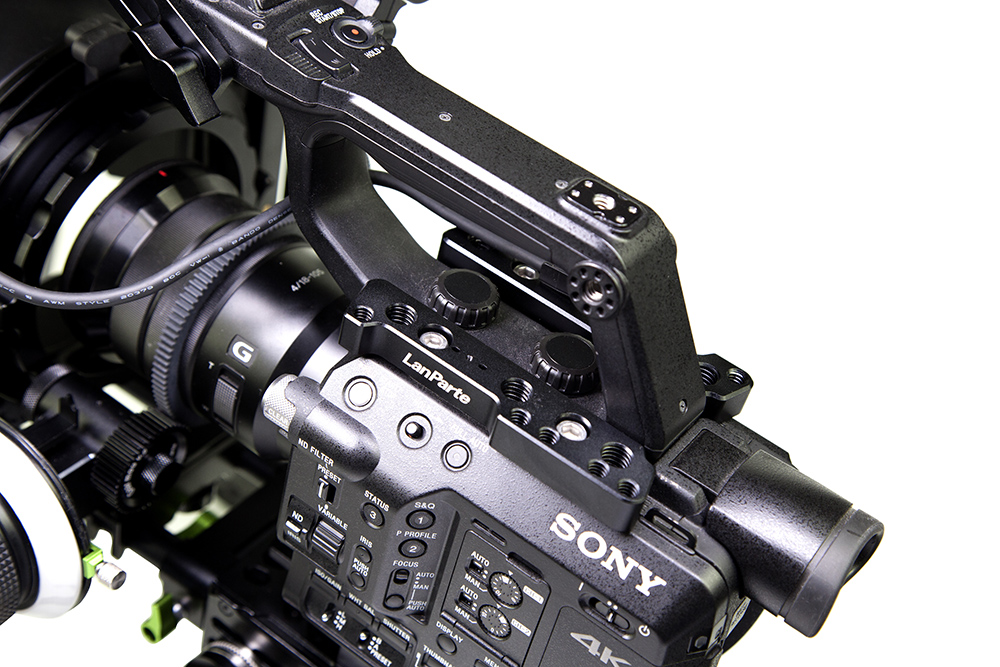

Use the LanParte Utility Top Plate for the Sony PXW-FS5 to add multiple accessory mounting points to your camera. This cheese plate is composed of two pieces that mount to the top of the camera, fitting around the base of the original PXW-FS5 top handle. The plate features both 1/4″-20 and 3/8″-16 threaded holes. When installing the plate, the camera’s EVF cable should be removed from its original location and relocated to the side of the cheese plate.

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.

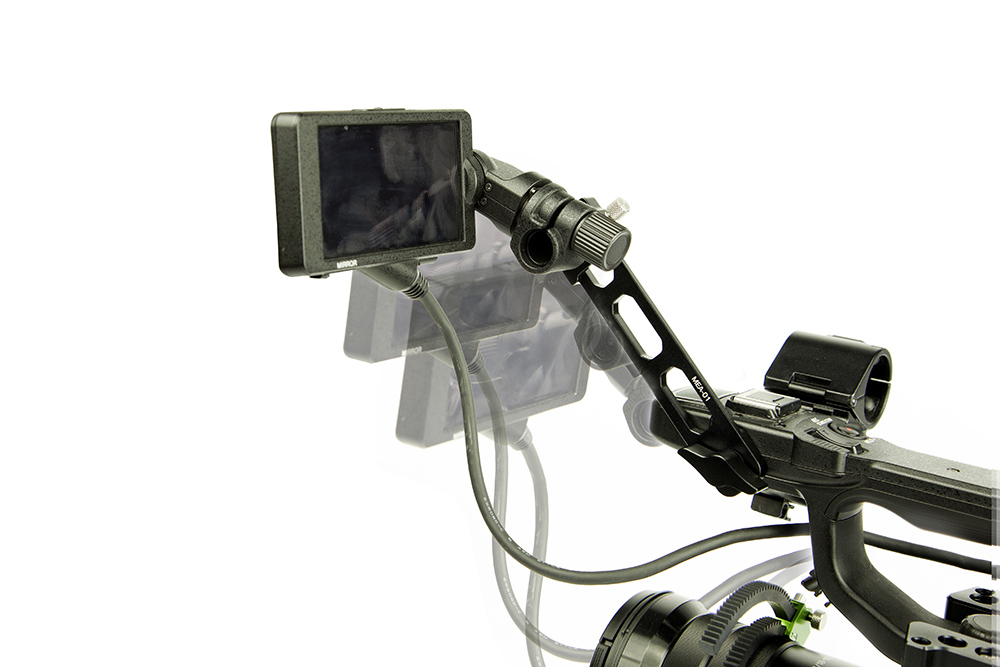

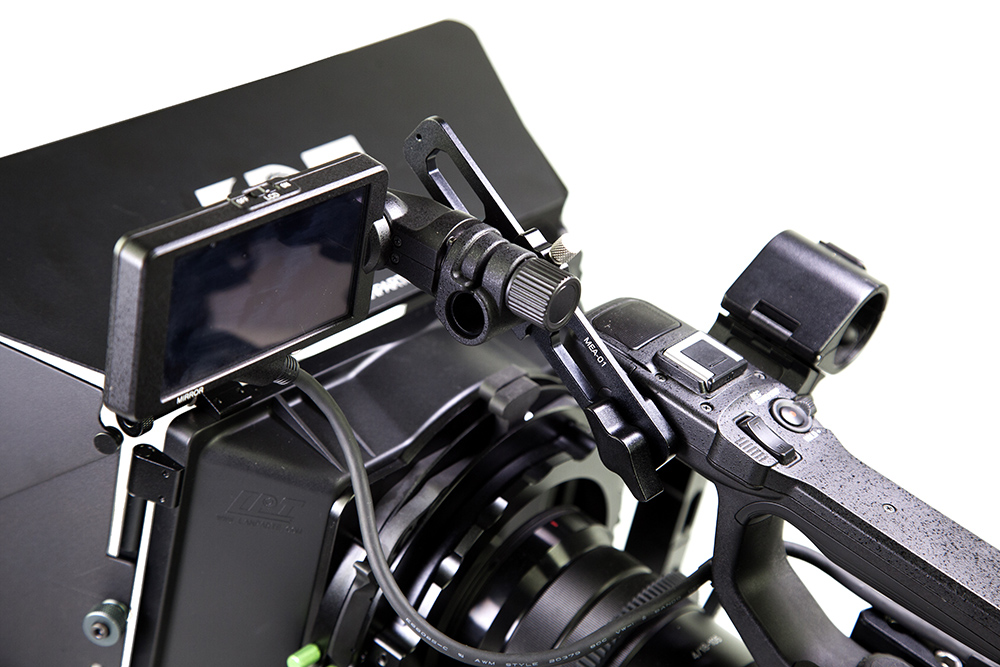

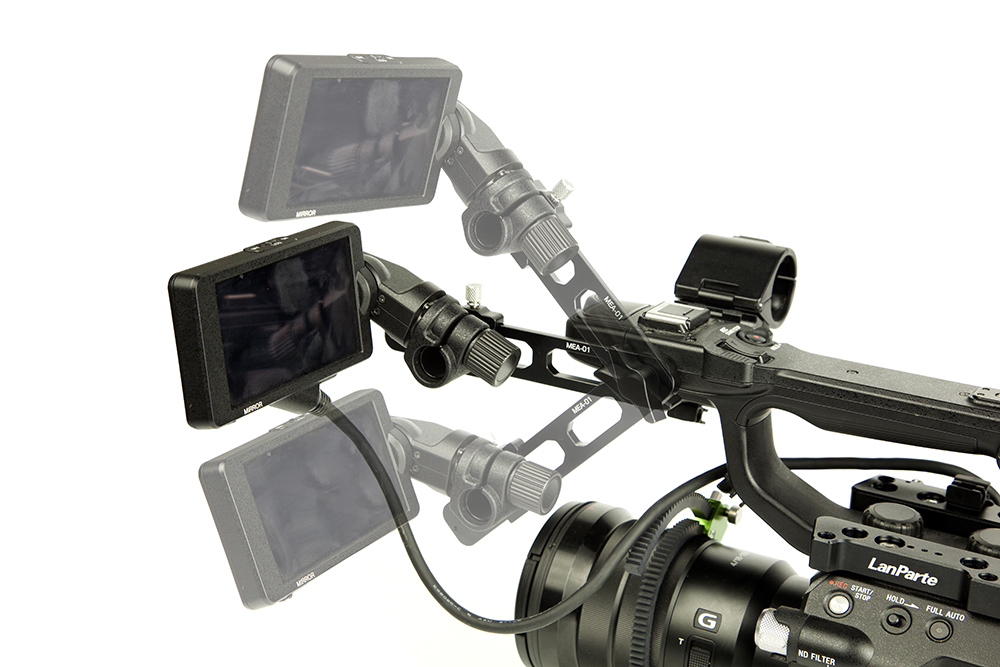

This LanParte EVF Extension Arm for the Sony PXW-FS5 allows you to extend and reposition the EVF for increased viewing comfort. No tools are necessary; the arm attaches to the camera’s original EVF mount via a thumbscrew. Its rotatable design allows it to be positioned at multiple angles, and it slides to extend the EVF up to 4″ from the mount. This lightweight arm is constructed from black-finished aluminum.

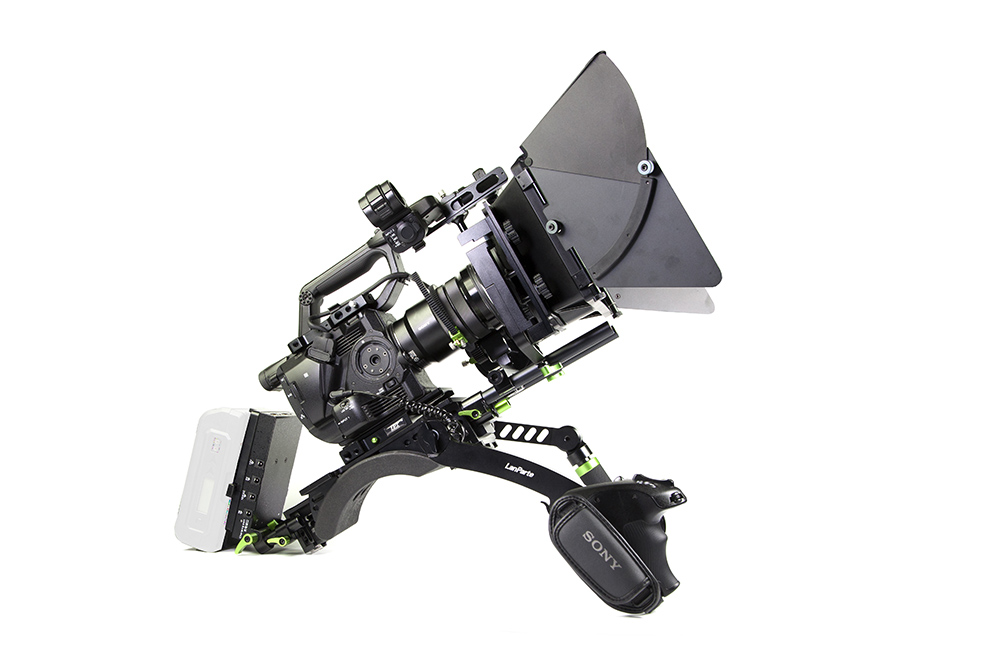

Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.

Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.

Use this DC Power Cable from LanParte to provide power to your Sony PXW-FS5 camera via the LanParte V-Mount Battery Pinch (available separately). The cable can also be used with any device accepting 12V power through a 2.1 x 5.5mm port.

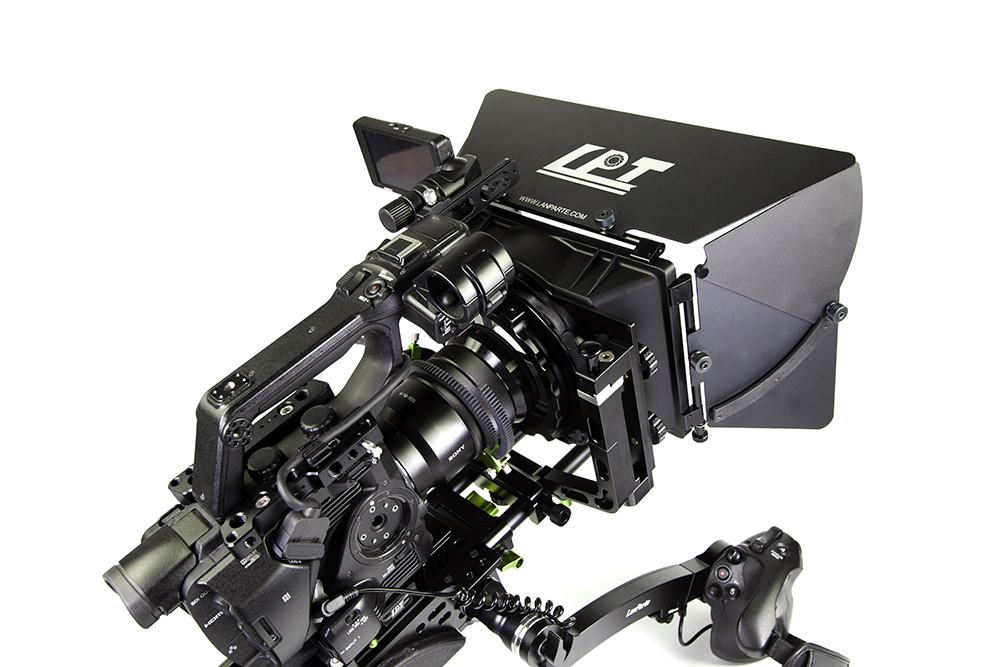

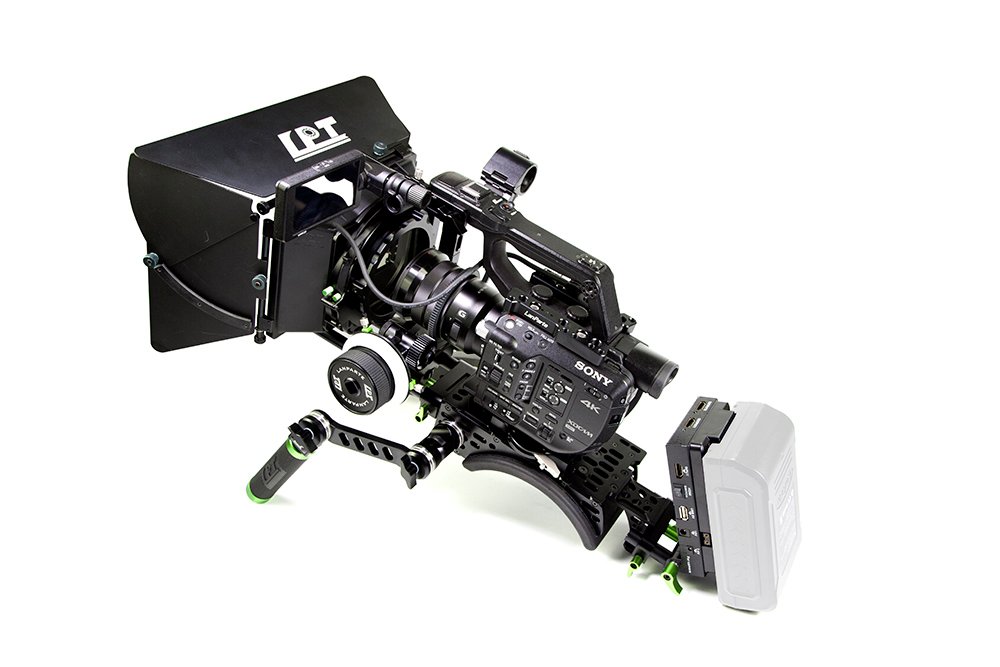

The LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.

The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters.

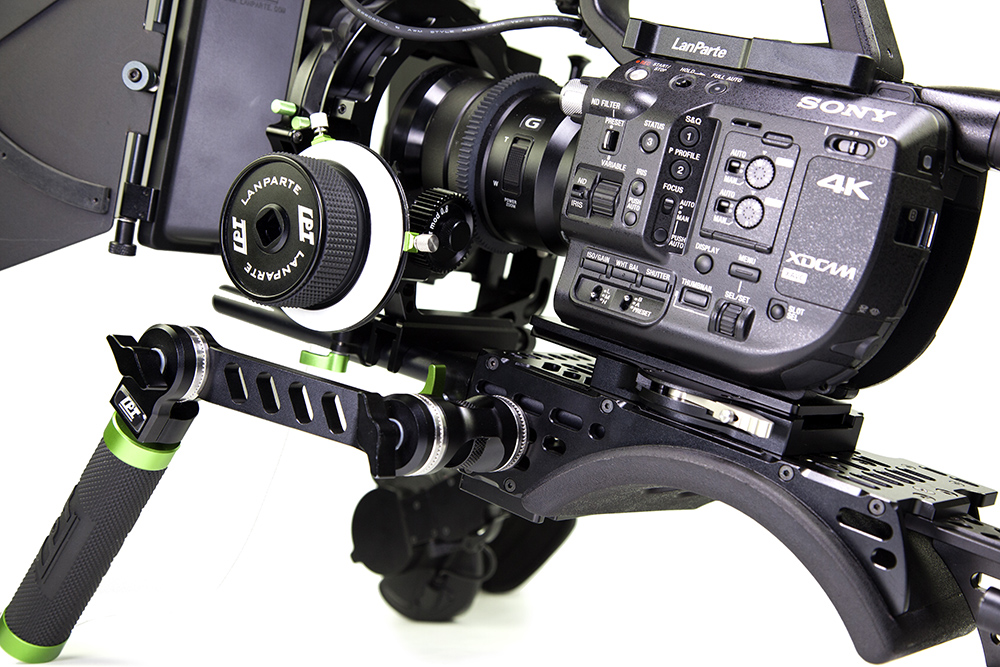

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1″. The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens.

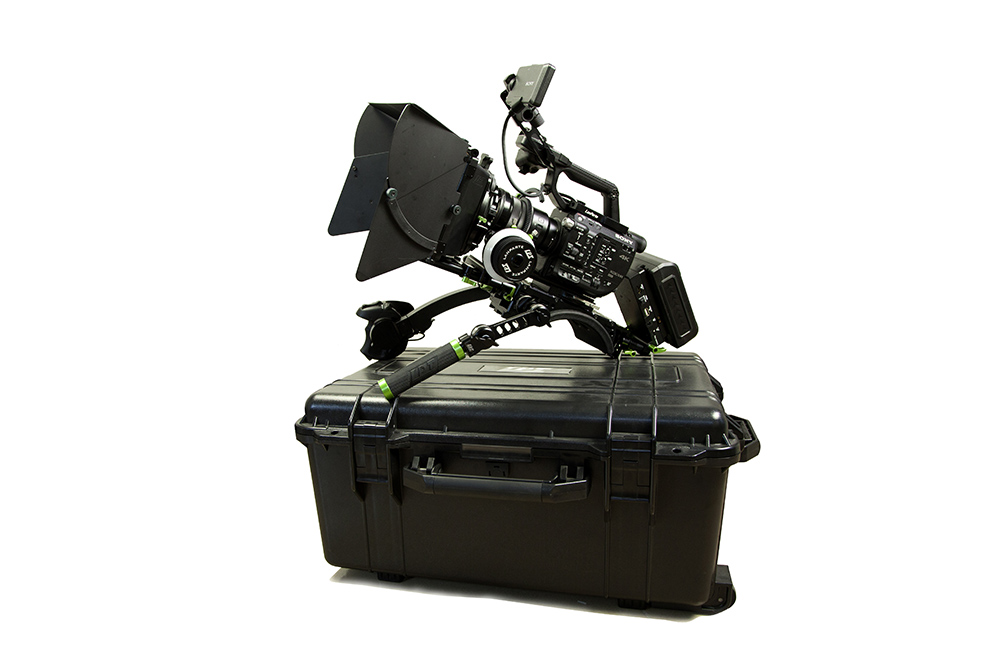

The durable and watertight Lanparte ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. A pair of wheels and an extendable pull bar are provided for easy transport, as well as a top handle and two side handles for carrying.
