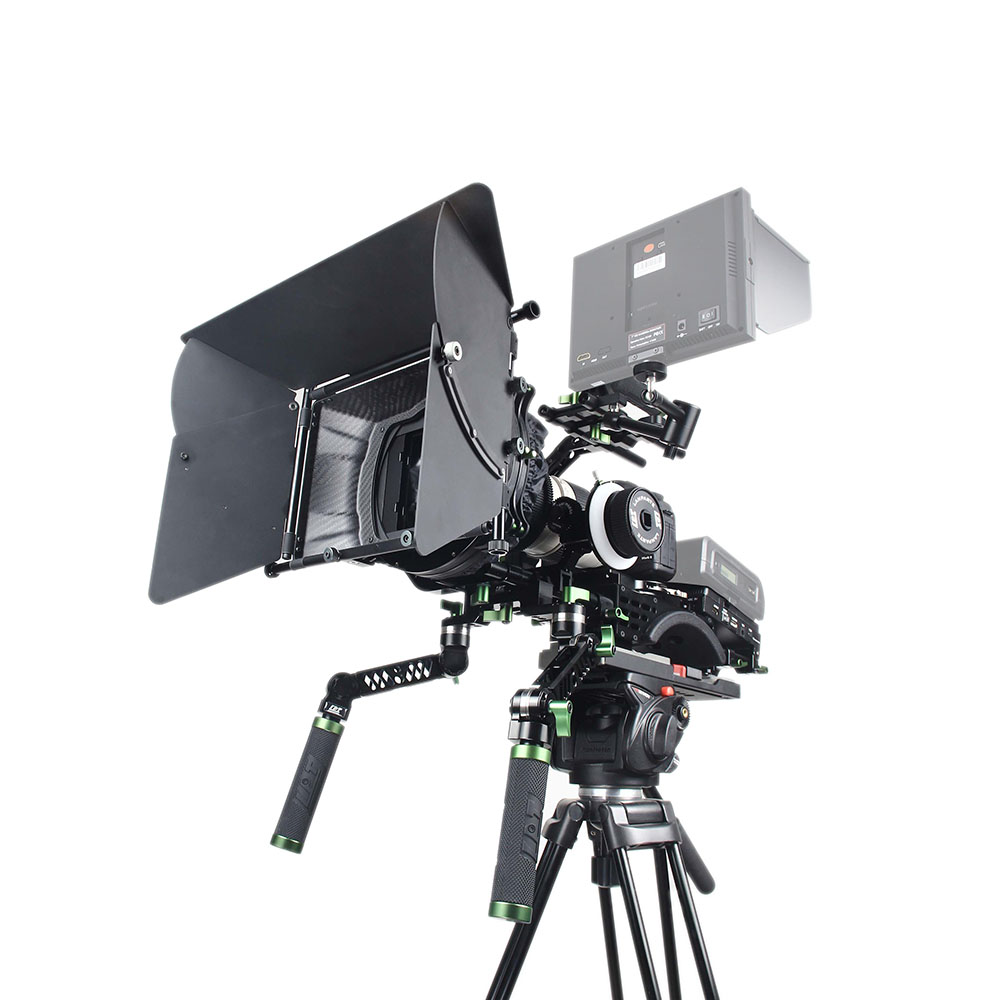

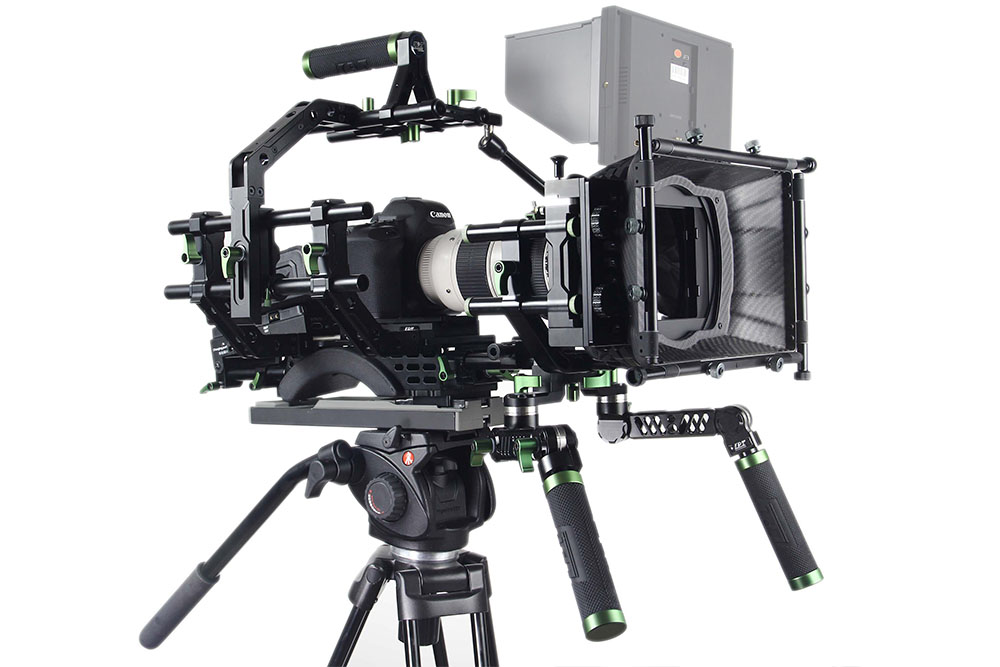

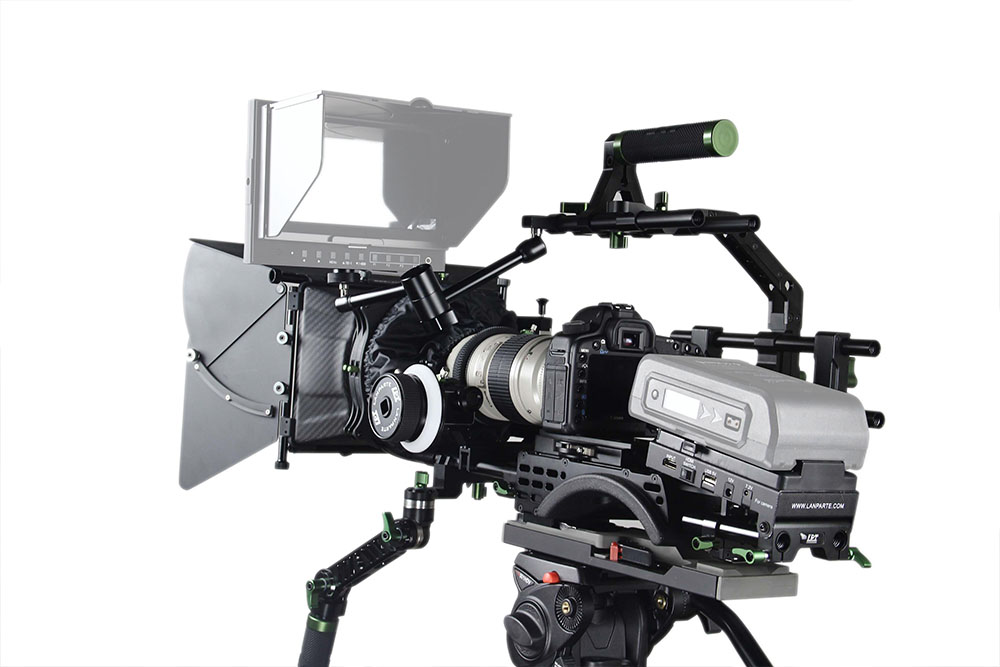

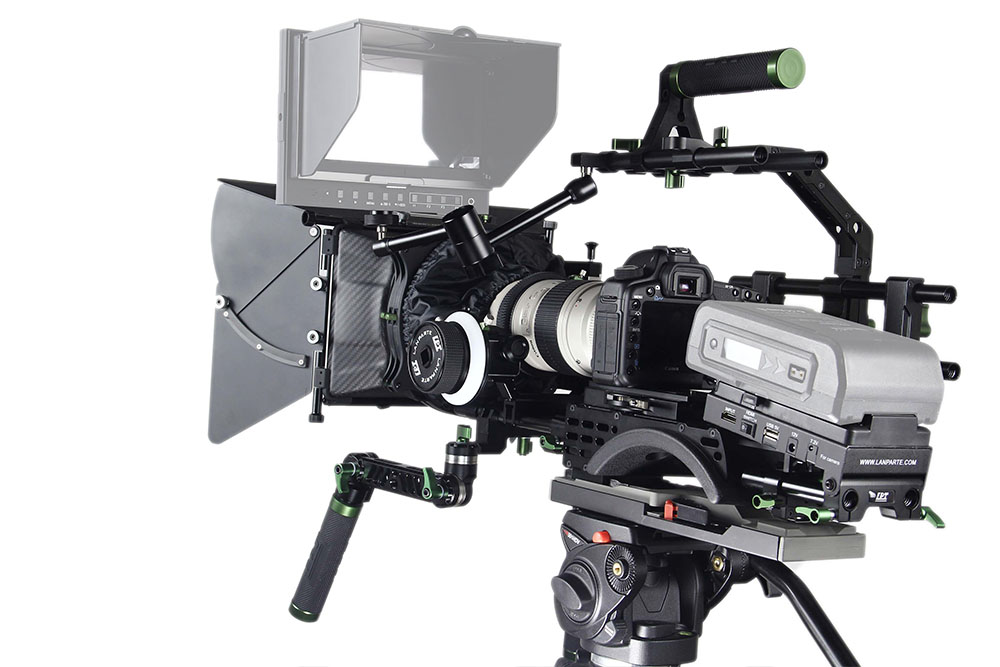

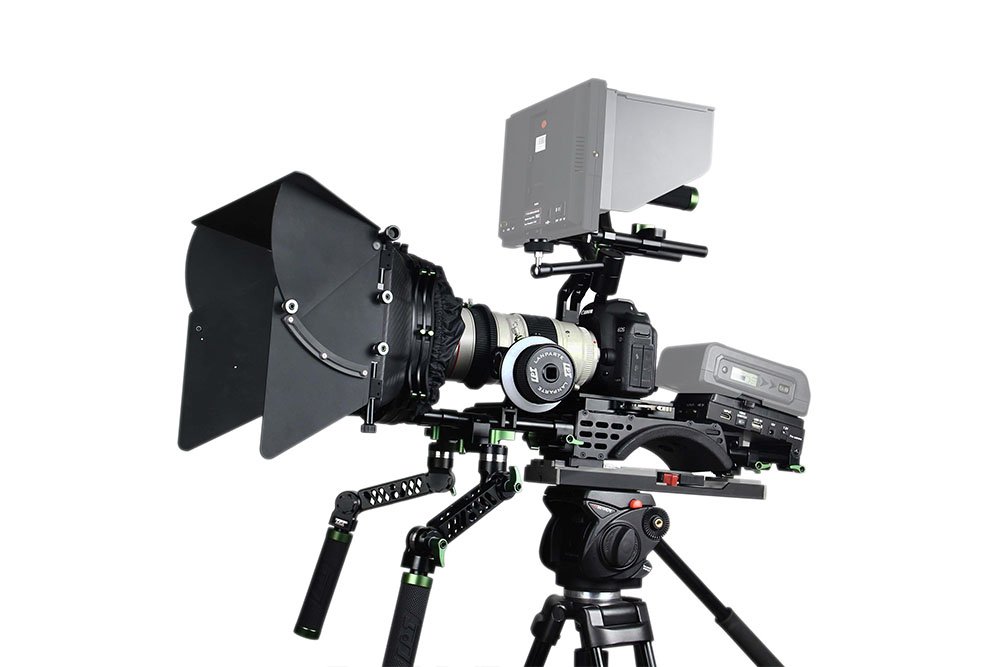

The Lanparte Professional Kit V2B provides you with the same fully loaded 15mm rod support rig for DSLRs and camcorders as the PK-02B kit, with the exception of the V-mount battery and HDMI monitor. The rig is built around a 15mm rod V-lock shoulder support with integrated quick-release camera plate, and a large C-shaped support frame. A pair of 7.9″ long rods is provided to support an included follow focus and matte box. For shoulder-mounted configurations, the kit comes with an adjustable dual handgrip system and an adjustable Magic Arm to mount an optional monitor or EVF. Rounding out the kit is a battery adapter plate that accepts V-mount batteries, and a LP-E6 dummy battery pack lets you power select Canon cameras like the 5D and 7D from the adapter plate. When not in use, the key components of the rig can be safely stored inside a hard protection case with custom pre-cut foam interior.
Your camera attaches to the V-lock shoulder support’s quick-release camera plate via a 1/4″-20 or 3/8″-16 screw. The shoulder support features front and rear 15mm rods port, which are height adjustable to assist with proper alignment of the matte box and follow focus. A V-lock mount on the bottom allows for quick attachment to compatible tripod plates. The C-shaped support frame mounts directly onto the shoulder support, providing 1/4″-20 and 3/8″-16 accessory mounting threads and 15mm rod clamps at the top for adding an included top handle. In addition to the top handle, rods on top of the rig are useful for attaching the Magic Arm monitor/EVF mount.
The included matte box fits lenses with a maximum front outer diameter of 150mm. It features two rotating 4 x 5.65″ filter stages, filter tray inserts for compatibility with 4×4″ filters, and a swing-away design for rapid lens changes. Removable top and side flags are included to block unwanted light from hitting your lens. Other accessories that mount in front of the camera are the Universal Grip V2 and follow focus, which both utilize a clamping design that lets you attach them to the 15mm rods without having to remove the matte box. The follow focus features integrated A and B hard stops that let you set start/end points on DSLR lenses with continuously rotating focus rings. The follow focus features a 0.8 pitch drive gear, which can be positioned on either side of the gearbox. It also features an ARRI standard accessory port, useful for using the included 15.9″ focus whip. For use with DSLR lenses that lack an integrated focus gear rings, an adjustable gear ring comes included. A lens support is also included when using long and heavy telephoto lens.
The V-mount battery adapter plate can be mounted on a pair of 2.4″ long 15mm rods at the rear of the support. It features a V-mount for attaching brick-style batteries and provides DC outputs with different voltages (5, 7.2, 12, and 15V). To power a Canon 5D, 7D, or other select Canon DSLRs from the adapter plate, use the LP-E6 dummy battery. Additionally, the Battery Pinch has a built-in HDMI splitter. A 25″ HDMI to mini HDMI with right-angle connector cable is provided for sending your camera output to the splitter input, and 39″ and 59″ HDMI cables are provided for outputting the signal to two different devices from the splitter.
Please see the links below for more information on the components of this kit.
LanParte Universal Grip V2 for 15mm Rods
The Lanparte Universal Grip V2 is an adjustable dual handle system for 15mm LWS rod support rigs. Each handle features three points of adjustment, letting you position each handgrip at the desired height, angle, and distance from the rods. Silica-gel surface on the handles provide a comfortable, non-slip grip. For easy attachment and removal of the system without having to remove other rod-mounted accessories, the Universal Grip V2 utilizes a quick release 15mm rod clamp, which locks in place using a single lever.
- Three points of adjustment for grip placement
- Spring-loaded steel spindle joint locking system
- Quick release 15mm rod clamp with single tightening lever
- 1/4″-20 and 3/8″-16 threaded holes on each arm for mounting accessories
- CNC-machined aluminum construction
- Hollowed-out design to reduce weight
LanParte MB-02 4 x 5.65″ Rod-Mounted Swing-Away Matte Box for 15mm Rods
The LanParte MB-02 4 x 5.65″ Rod Mounted Swing Away Matte Box for 15mm Rods is a 4 x 5.65″ matte box that features carbon fiber and aluminum construction that makes it lightweight and durable. Designed to work with lenses with a maximum outer diameter of 150mm, the matte box features two rotating 4 x 5.65″ (Panavision-sized) filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes, and features 1″ of height adjustment that allows you to adjust for non-standard camera heights.
Both filter trays can slide in the rotating stages, allowing you to adjust their height. The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. An anti-reflection fabric sleeve is included to protect your image by blocking stray light from behind the camera sneaking around the lens and bouncing off of filters in the matte box. Please note the matte box does not include any support rods.
Swing Away Design
Rotating 4 x 5.65 Filter Trays
Top & Side Flags
- The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don’t move during the shot.
- Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.
Universal Anti-Reflection Sleeve
19mm Rod Support
LanParte Follow Focus V2 with Hard Stops for 15mm Rods
The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.
- Clamps onto 15mm LWS rods
- Integrated A/B hard stops
- Copper gear and precision bearing
- Standard 0.8 pitch drive gear included
- Drive gear can be flipped to either side of gearbox
- Sliding dovetail design for adjusting to different sized lenses
- Removable magnetic marking disc
- ARRI standard 12mm accessory port
- CNC machined aluminum components
- Adjustable lens gear ring included
LanParte Long Focus Whip
Pull focus while standing away from the lens with this Lanparte Focus Whip. This 15.9″ focus whip utilizes an ARRI standard connection, so you can use this whip with any follow focus that features a standard ARRI accessory port. At the other end of the whip is a rubberized metal focus knob, which provides a strong grip surface for accurate focus pulls.
LanParte V-Mount Shoulder Support V2
Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.
LanParte C-Arm V2
The Lamparte C-Arm V2 is a C-shape support that fits onto any industry standard 15mm rod system. It allows your rig to be held from the top, when used in conjunction with the top handle (sold separately). If you are using a Lanparte VMS-01 shoulder pad and base plate unit, you can use the included mounting adapters to attach this arm directly onto the side of the VMS-01, saving a huge amount of space on the rig, and keeping the handle directly above the camera.
As well as the special method of mounting, the CA-02 model is larger than the standard CA-01 C arm, making it ideal for larger cameras. Clamping collars allow the weight balance to be quickly shifted without completely re-configuring the rig. This enables you to point the camera downwards, upwards, or horizontal, in a matter of seconds. There is also a horizontal weight balance adjustment screw at the top of the arm, so you can ensure your camera is perfectly level, even if the weight is unevenly balanced. Built into the support is a secure hot shoe mount, as well as a 3/8″-16 and 1/4″-20 screw thread, for easy mounting of compatible accessories. The CA-02 is supplied with one set of rods to connect the upper arm section to the lower arm sections.
LanParte Top Handle for 15mm Rods
The Lanparte Top Handle is designed for camera cages and rigs that use or accept 15mm LWS rods positioned above the camera. It is constructed from CNC machined aluminum and features a dual 15mm rod clamp and a non-slip silica-gel grip. A pair of 7.87″ long aluminum rods come included.
LanParte Magic Arm

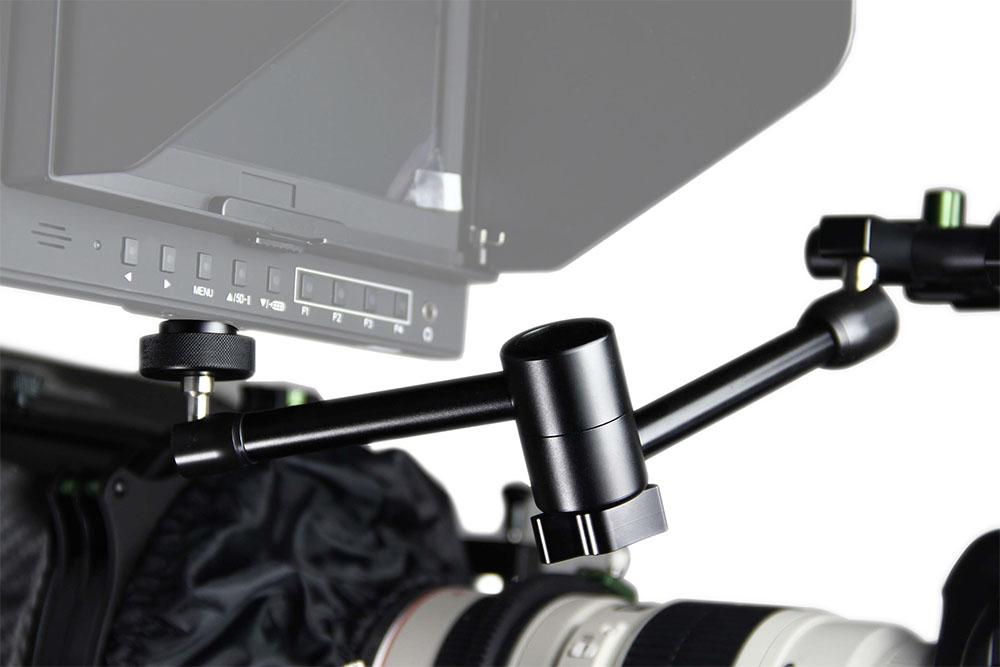

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.
LanParte VBP-01 V-Mount Battery Pinch
Power your camera rig with the LanParte VBP-01 V-Mount Battery Pinch. Featuring multiple power outputs and an integrated HDMI splitter, this unit provides effective power and video signal management. Three barrel jacks provide 12, 7.4, and 5 VDC of power output to different rig components, while a USB output is available for charging your mobile or wireless device. A barrel jack power input can charge the battery while tethered. Using the integrated 15mm LWS rod clamp, this battery plate can be mounted onto the rear of a shoulder rig. Having the device in this configuration allows you to use it and the battery as a counterweight for an otherwise front-heavy rig.
LanParte E6 Battery Dummy Pack
The E6 Battery Dummy Pack from Lanparte is a dummy battery that allows you to power your camera from an external power supply, if you don’t want to use battery power. The E6 is compatible with the following camera models: Canon 5D3, 5D2, 7D, and 60D. This dummy pack has a full decoding chip inside.
LanParte HDMI to Right-Angle Mini-HDMI Cable (26″)
This 26″ HDMI to Right-Angle Mini-HDMI Cable from Lanparte is used to connect your camera to a monitor or HDMI splitter for HDSLR video shooting. The 90° connector plugs securely into your camera and is designed to offer a reliable and durable connection. Additionally, this cable is capable of supporting Full HD 1080p video streams.
LanParte Tele-Lens Support V2
When using long or heavy lenses on your mirrorless camera or DSLR, extra support can be provided by the Lanparte Tele-Lens Support V2 when mounted on a 15mm LWS rig. The lens support distributes the weight of the lens along the length of the rig, reducing stress on the camera’s lens mount. The support arm can be adjusted in height to conform to the supported lens’s diameter while the flexible rubber ring can be adjusted to compensate for torsional force during focus pulls.
LanParte ABS Protection Case for DSLR Camera Rig Kit
The durable and watertight Lanparte ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. A pair of wheels and an extendable pull bar are provided for easy transport, as well as a top handle and two side handles for carrying.
- DSLR with C-Arm Support
- Adjustable baseplate
- Follow focus
- Matte box
- French flags
- Top handle
- Shoulder support and power supply system
- Universal Grip
- Magic Arm
- 8″ HDMI monitor
