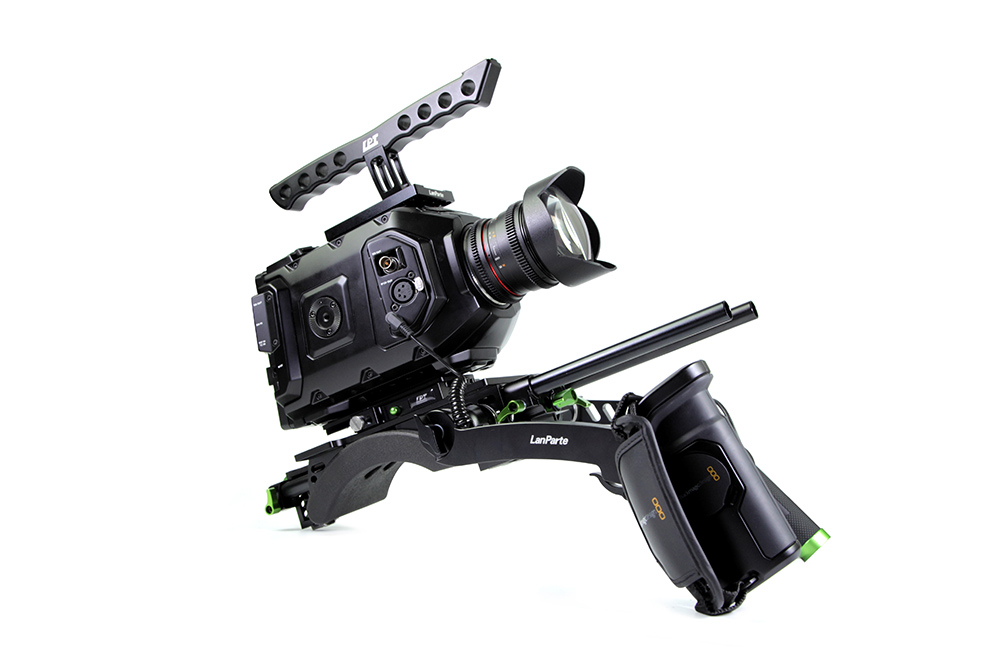

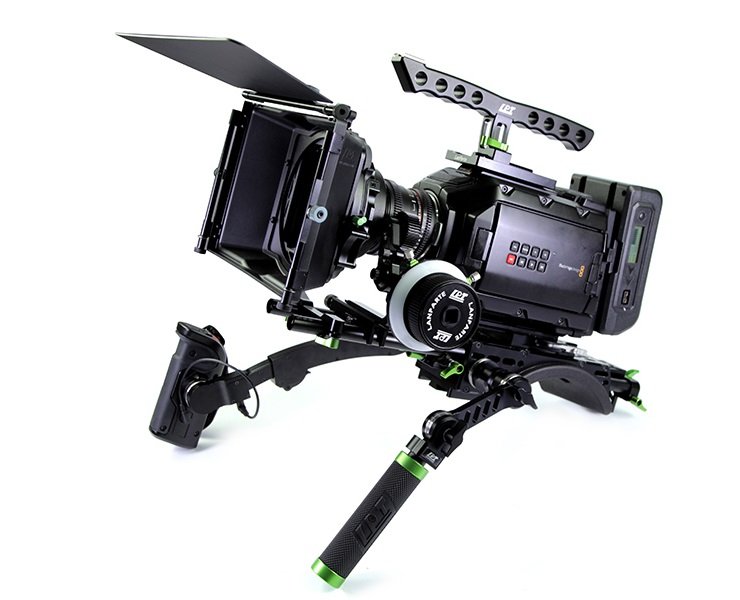

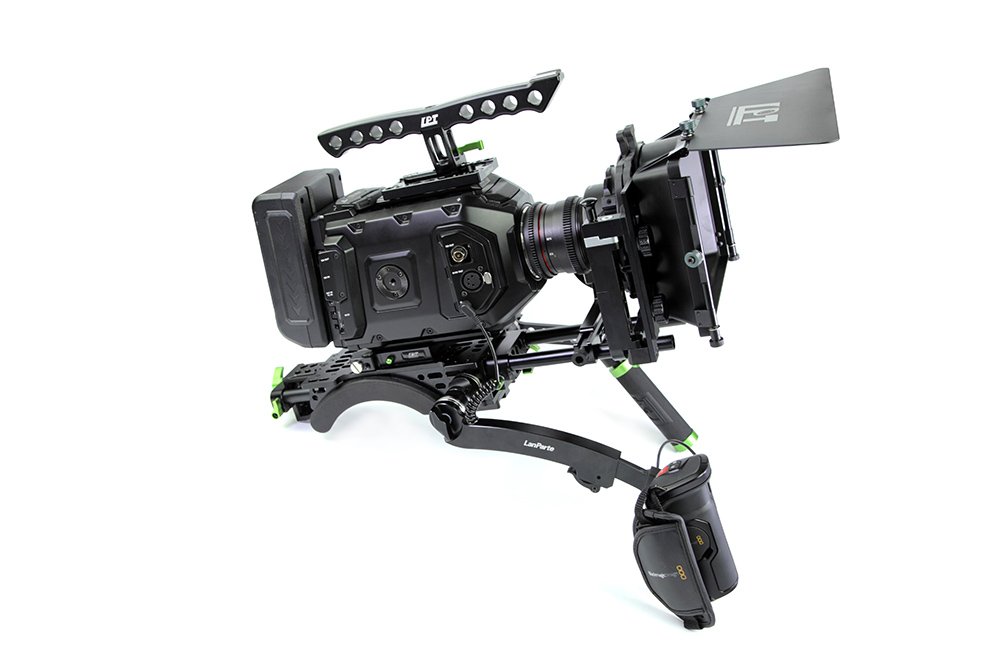

Lanparte URSA mini Pro shoulder kit

  • Shoulder mounted
  • Extension arm for original hand grip
  • Top cheese plate fit for Ursa mini camera
  • One-in-all power supply
  • AB hard stop follow focus
  • 4*4 matte box

$2,110.00

Name
Description
Quantity
SKU: URSK-03 Category: Tag:

Description

The Lanparte Pro Shoulder Kit includes the URSA Mini Top Handle, URSA Mini Extension Arm, ARRI Rosette Handgrip, Double ARRI Rosette Lock Threaded Hole with Double Rod Clamp, V-Mount Shoulder Pad, two 9.8″ Aluminum 15mm Rods, Follow Focus V2, Follow Focus Gear Ring V2, Follow Focus Arm, ABS Matte Box, Magic-Arm V1, V-Mount Battery Back Plate, and ABS Safety Case.

The Top Handle with cheese plate for your URSA Mini offers multiple 1/4″-20 and 3/8″-16 holes, maximizing your accessory mounting choices. The Extension Arm is specifically designed to work with the original handgrip of the URSA Mini and a baseplate or shoulder rig (available separately). Offering ARRI standard rosette adapters on both sides, the 15mm rod compatible Dual Rod Clamp allows you to attach and adjust rosette-mount handgrips on your shoulder rig.

Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. Mount accessories to your rig with the pair of 9.8″ 15mm Aluminum Rods. The Follow Focus V2 clamps onto the 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1″. The Extension Arm for Follow Focus increases the height of your Follow Focus FF-01 or FF-02 (sold separately) to make it fit taller cameras, such as the Canon C300 and the RED EPIC.

The MB-01 4 x 4 Rod-Mounted DSLR Swing-Away Matte Box fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. Mount a 1/4″-20 accessory to your 15mm LWS rig with the Magic Arm and gain the flexibility to fit it in nearly any orientation you require. The durable and watertight ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of your Lanparte camera rig kit.

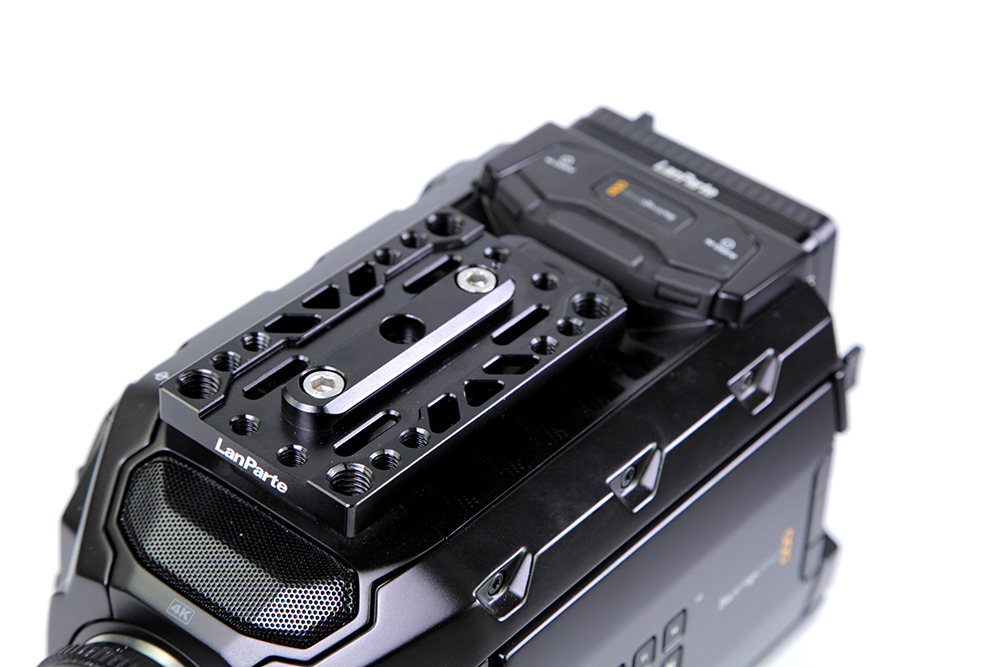

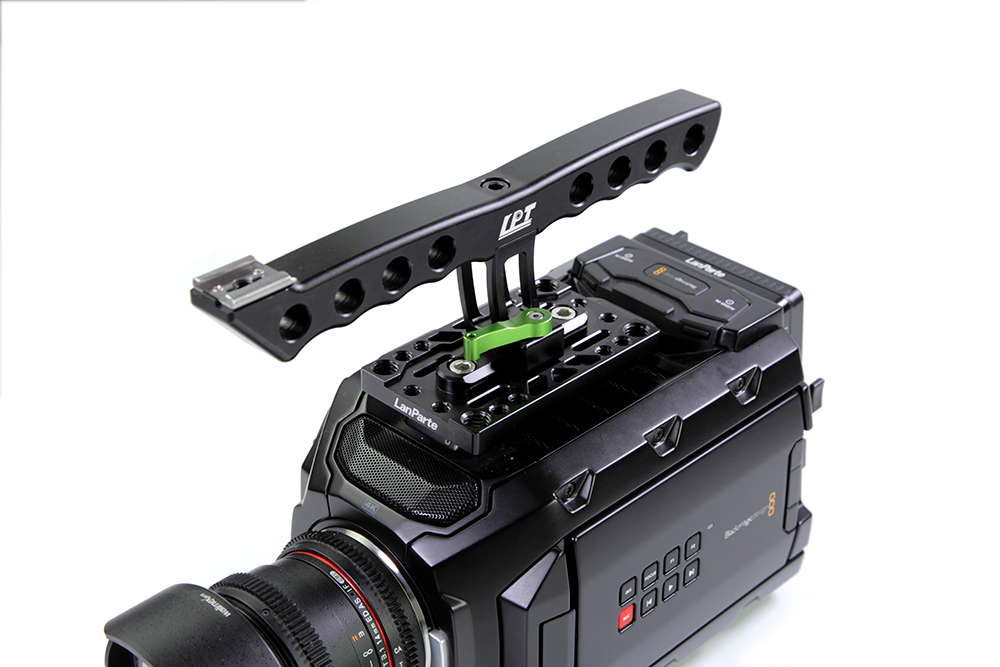

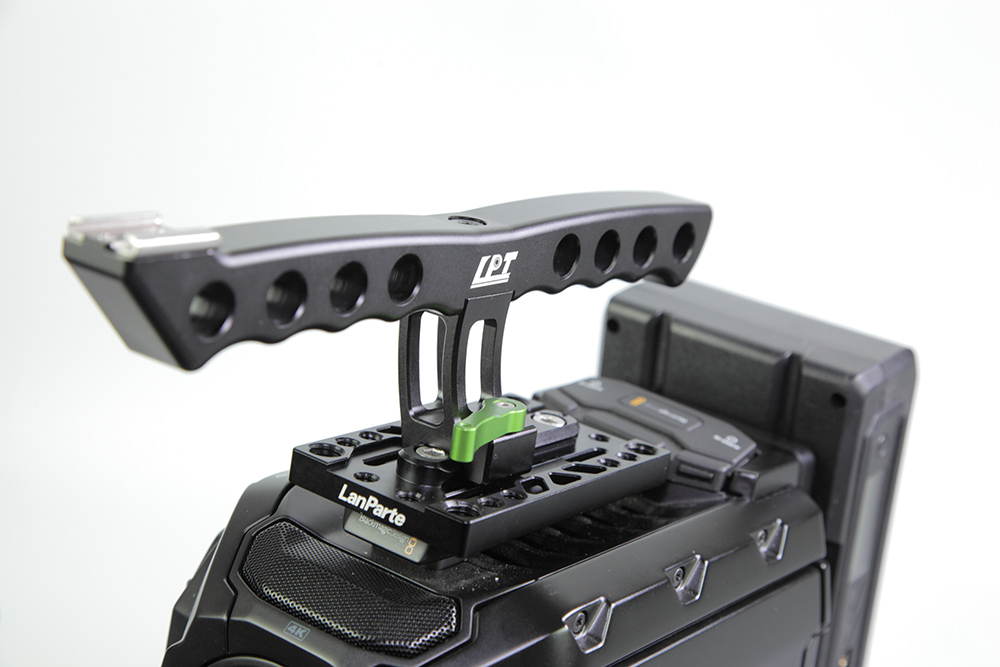

LanParte Top Handle/Cheese Plate for URSA Mini

Use this Top Handle/Cheese Plate combination from LanParte with your URSA Mini. Both the handle and its cheese plate base offer multiple 1/4″-20 and 3/8″-16 holes, maximizing your accessory-mounting choices. The cheese plate mounts to the top of the camera, and the top handle attaches to the cheese plate via a locking NATO rail connector. The handle is T-shaped, offering a more secure grip design than the original URSA Mini handle. Other features include hollow aluminum construction to minimize weight, and a front cold shoe mount.

Multiple 1/4″-20 and 3/8″-16 mounts for easy accessory mounting
Mounting holes are on both the handle and its cheese plate base
A cold shoe mount is placed at the front of the handle
The top handle attaches to the cheese plate easily via a NATO rail connector with lever
Hollow aluminum construction for reduced weight

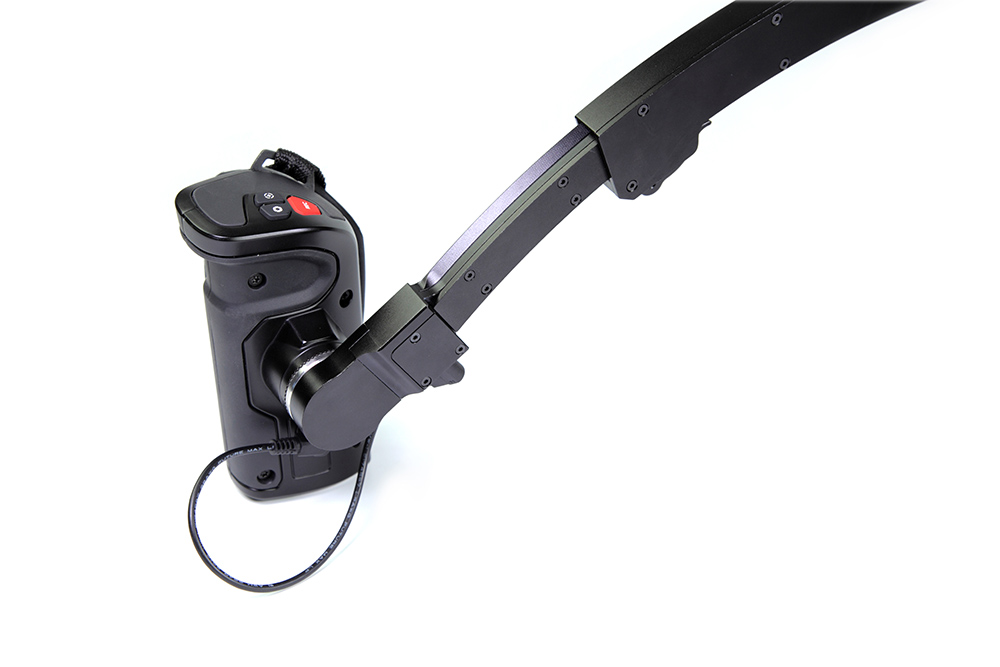

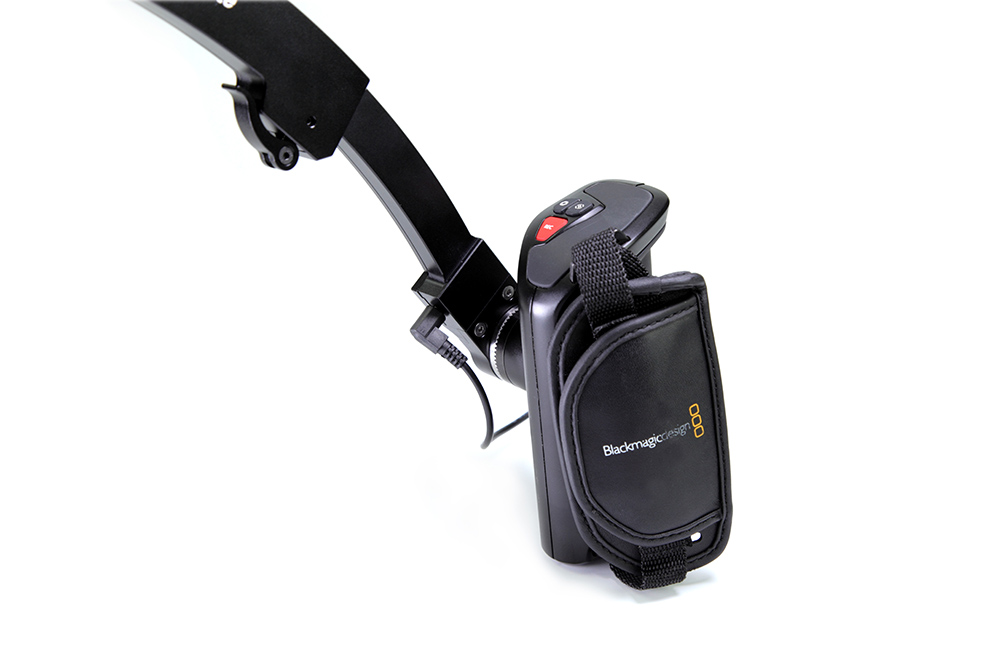

LanParte Extension Arm for the URSA Mini

This LanParte Extension Arm is specifically designed to work with the original handgrip of the URSA Mini and a baseplate or shoulder rig (available separately). It allows you to position the handgrip at an extended distance from the camera, increasing the overall stability of the rig and making operation more comfortable. The extension arm adds almost 1′ of length to the handgrip, and the included Arri-style rosette extension can be used to add just over 2″ distance from the side of the camera rig. The rosette connection allows the arm to be positioned at whatever angle you prefer. This arm features a handily incorporated LANC cable, allowing you to maintain use of all the handgrip’s controls.

Designed for the URSA Mini
Fully adjustable 2″ Arri-style rosette extension included
Built-in 3-pin LANC cable maintains all handgrip controls
Adds approximately 1′ to the handgrip length, and 2″ to the baseplate width
Aluminum construction

LanParte Rosette Handgrip (Pair)

This Rosette Handgrip pair from Lanparte enables two-handed support with any camera, baseplate, or accessory with ARRI standard rosettes. Each handle features a non-slip rubber grip and a short extension arm that lets you position the handle at the desired height and angle.

  • CNC macnined aluminum construction
  • ARRI standard M6 thread
  • Rubber grip

LanParte Dual Rod Clamp with Rosettes

Offering ARRI-standard rosette adapters on both sides, this 15mm rod compatible Dual Rod Clamp, from Lamparte, allows you to attach and adjust rosette-mount handgrips on your shoulder rig. The rosette adapters are 60-tooth ARRI-standard compatible and made of steel.

LanParte V-Mount Shoulder Support V2

Build up your DSLR, mirrorless, or camcorder to fit on your shoulder with the Lanparte V-Mount Shoulder Support V2. An arched pad makes up most of the base of the Shoulder Mount, providing a comfortable platform for the rig to rest on your shoulder. The front of the rig has a v-wedge for interfacing with a standard VCT-14 ENG quick release tripod plate. On top of the shoulder mount, a sliding baseplate lets you properly balance the camera after attaching it to the plate. As not all cameras have the same optical axis, the 15mm rod blocks are height-adjustable to allow your 15mm LWS accessories to all fit properly.

V-Mount lock on bottom of shoulder support
Quick release system with safety trigger
Mountable on VCT-14 via the tail lock
Adjustable rod height
15mm Rod connectors
Ergonomic shoulder pad
Spirit level
CNC machined
Hollow design, lightweight at 3 lb

LanParte 15mm Aluminum Rod (Pair, 9.8″)

Mount accessories to your rig with this pair of 9.8″ 15mm Aluminum Rods from Lanparte. This rod set is extendable via integrated 12mm threading on the rod ends, allowing for separately available extension screws to be used to mount more threaded rods.

Extendable with optional LPT-V2-059 Screw
Bevel-edged
Anodic oxidation surface treatment
Glossy finish

LanParte Follow Focus V2 with Hard Stops for 15mm Rods

The Lanparte Follow Focus V2 clamps onto 15mm LWS rods, allowing you to smoothly and accurately pull focus with cinema and DSLR lenses equipped with gear rings. Its quick release design that lets you easily snap it onto the rods without having to remove other rod-mounted accessories, such as a matte box. Integrated into the follow focus are A and B hard stops, letting you set start/end points on DSLR lenses that have continuously rotating focus rings. Additionally, the follow focus features an ARRI standard accessory port for using optional focus whips and speed cranks. A standard 0.8 pitch gear comes includes, which can be positioned on either side of the gearbox, as well as a removable magnetic marking disc. Also included is an adjustable gear ring for use with DSLR lenses that lack integrated focus gear rings.

Key Features

  • Clamps onto 15mm LWS rods
  • Integrated A/B hard stops
  • Copper gear and precision bearing
  • Standard 0.8 pitch drive gear included
  • Drive gear can be flipped to either side of gearbox
  • Sliding dovetail design for adjusting to different sized lenses
  • Removable magnetic marking disc
  • ARRI standard 12mm accessory port
  • CNC machined aluminum components
  • Adjustable lens gear ring included

LanParte Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus

The Gear Ring with Pin-Lock Tightening Mechanism for Follow Focus from Lanparte is a rubber gear with a standard pitch of 0.8 and a maximum diameter of 4.1″. The pin-lock tightening mechanism secures the gear ring to ensure that the follow focus gear drive has a slip-free grip on the focus ring of your camera lens.

LanParte Extension Arm for Follow Focus

The Extension Arm for Follow Focus from Lanparte increases the height of your Follow Focus FF-01 or FF-02 (sold separately) to make it fit taller cameras such as the Canon C300 and the RED Epic. The arm features an adjustable gear angle and a standard 0.8 pitch.

Increases height of follow focus
Gears of different mods can be mounted to it
Adjustable gear angle
CNC machined

LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box

The LanParte MB-01 4×4 Rod-Mounted DSLR Swing-Away Matte Box is a 4 x 4 matte box that fits lenses with a maximum front outer diameter of 100mm. It features ABS plastic and aluminum construction that makes it lightweight. It features two rotating 4 x 4 filter stages and mounts onto lightweight 15mm rods. The matte box incorporates a swing-away design for rapid lens changes. The included 4 x 4 filter trays can slide in the rotating stages, allowing you to adjust their height.

The included removable top and side flags can be precisely set and locked to block stray light from flaring your lens. The included anti-reflection rings protect your image by blocking stray light behind the camera bouncing off of filters in the matte box and flaring your image. In addition, the interior of the matte box is finished with a black anti-reflective coating to reduce reflection off the matte box back onto filters.

Lightweight Construction

The matte box itself is made out of ABS plastic, with aluminum used for the support structure. This provides a lightweight yet sturdy unit that is appropriate for shooting hand-held or with a stabilizer rig, when every ounce counts.

Swing Away Design

The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods. This way you don’t have to hand off the matte box to someone else, hold it under an arm or between your knees, or hang it under the rods while you work, greatly speeding your workflow and reducing the chance of dropping the matte box or having a filter tray fall out.

Rotating 4 x 4 Filter Trays

The matte box features two independently rotating 4 x 4 filter trays; this allows you to simultaneously rotate two filters, such as one polarizer and one graduated filter, or even two graduated filters, for creative effect. The filter stages each rotate 90° and feature a tray locking knob, which allows you to adjust the height of the filter and lock it in place. This is a useful feature when using graduated filters in your matte box. The filter trays feature a center detent, so you can easily position them exactly in the middle.

Top & Side Flags

  • The removable top and side flags provide you additional flare control and attach to the matte box with a lockable hinged assembly. This allows you to precisely set your flags to match the edge of frame for different lenses and lock them in place so that they don’t move during the shot.
  • Each side flag is made from two pieces with a pivot point that allows you to pivot the outer flap approximately 45° providing additional height so that the side flags can butt up against the top flag when it is in a raised position. The outer flap of the side flags run in a track, and a locking thumb nut allows you to lock the side flags pivot adjustment.

Anti-Reflection Inserts

The four included anti-reflection inserts work with your lenses. They provide a light-tight seal so that light from behind the camera cannot leak through where the lens joins the matte box and reflect off filters to flare your image.

LanParte Magic Arm

Mount a 1/4″-20 accessory to your 15mm LWS rig with the Lanparte Magic Arm and gain the flexibility to fit it in nearly any orientation you require. Once you have the accessory positioned, twist the knob to secure the arm, holding your mounted accessory fast.

Angle-adjustable
CNC machined aluminum construction

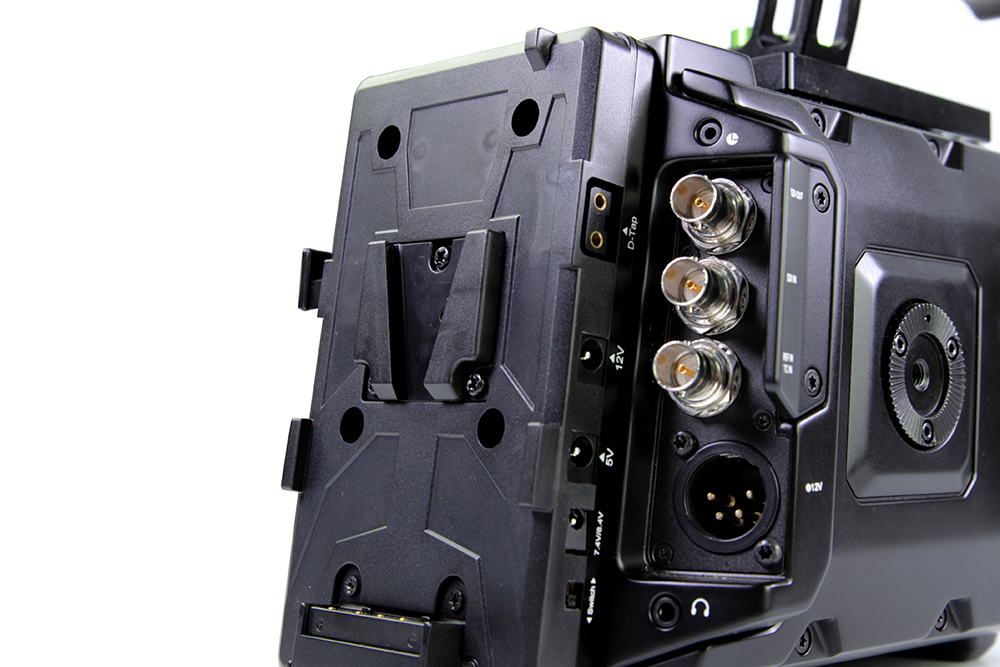

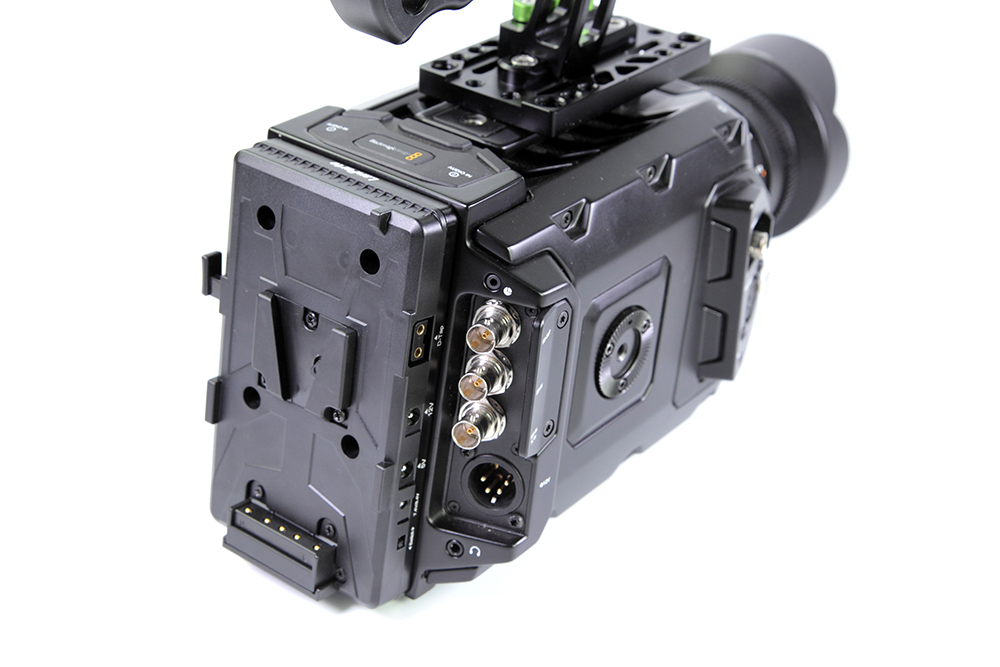

LanParte Battery Back Pinch for Blackmagic URSA Mini Camera (V-Mount)

The Battery Back Pinch from LanParte is designed to mount on back of the Blackmagic URSA Mini camera. It features a D-Tap pass-through port (not regulated), an AC input, a charging port, 12, 5, and 7.4/8.4 VDC barrel outputs, and a 15 VDC V-mount port. This battery pinch includes an AC adapter, four DC-55-21 DC cables, one DC-35-135 DC cable, and a D-Tap 4-pin XLR power adapter cable.

LanParte ABS Protection Case for DSLR Camera Rig Kit

The durable and watertight Lanparte ABS Protection Case features a custom pre-cut foam interior designed to hold and protect the key components of Lanparte DSLR camera rig kits. A pair of wheels and an extendable pull bar are provided for easy transport, as well as a top handle and two side handles for carrying.

Pre-cut foam interior fits:

  • DSLR with C-Arm Support
  • Adjustable baseplate
  • Follow focus
  • Matte box
  • French flags
  • Top handle
  • Shoulder support and power supply system
  • Universal Grip
  • Magic Arm
  • 8″ HDMI monitor
